Wattflyer RC Network: RC Universe :: RCU Magazine :: RCU Forums :: RCU Classifieds :: RCU User Reviews :: RCU YouTube
Home Who's Online Calendar Today's Posts RealTime Post Spy Mark Forums Read
Go Back   WattFlyer RC Electric Flight Forums - Discuss radio control eflight > Electric R/C Airplanes > Scratch and Kit Built Aircraft
Register Members List Wattflyer Extras Articles Search Today's Posts Mark Forums Read Social Groups

Scratch and Kit Built Aircraft Discuss and share your scratch built or kit built aircraft as well as building techniques, methods, mediums and resources.

Thank you for your support (hide ads)
Reply

Thread Tools Display Modes
Old 11-27-2012, 04:31 AM   #51
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Thanks Karolenaz.

Canopy
Not feeling like reinventing the wheel I set about installing the canopy in my usual way. First I built a simple frame, used kitchen wrap to keep the glue from sticking to the fuselage...



Sheeting is glued to the frame...



Second layer of sheeting, the lamination should help maintain the curved shape...



Sanded flush...



A clearer view of the sub-frame...



A coat of gray paint & on goes the soda-bottle canopy...



She's looking kinda sexy...



Time once again to let the glue dry.

Nodd is offline
  Reply With Quote
Old 11-27-2012, 04:33 AM   #52
mclarkson
Super Contributor

mclarkson's Avatar

Join Date: May 2010
Location: Wichita, KS
Posts: 3,018
View mclarkson's Gallery4
Thanked 182 Times in 180 Posts
Awards Showcase

Scratchbuilders Award  Outstanding Contributor Award
iTrader: (0)
Friends: (7)
Default

That looks really, really nice!

mclarkson is offline
  Reply With Quote
Old 11-28-2012, 03:49 AM   #53
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Thank you. Yeah I like the gray, gives the impression of depth under the canopy without eating up valuable electronics space. Best of all, with the canopy on there, my fuselage no longer looks like an giant Elf's shoe.

I got a few odds & ends done today... Trimmed the excess plastic from the canopy. Scared myself silly drilling a hole up through the pod to the wing-saddle for the wing's servo wires, turned out okay. Performed a balance test to see how much weight I have to play with for the tail.

Y-Tail
After some thought I think I'm going to stick with a V-tail for this bird but I'll be adding a small sub-fin effectively making this a Y-tail, fun fun...



Once again I used the sailplane V-tail calculator from tailwindgliders.com to figure out the tail sizing & geometry. And before anyone starts worrying about the V-tail angle, that'll be set at the usual 110.

I thought about adding a small rudder to the sub-fin but that'd take another servo & require an extra channel which my DX7s doesn't have. Would have been cool & an interesting mix with the V-tail's ruddervators but there's really no need for a rudder. I'll get to designing the tail's structure tomorrow.

Nodd is offline
  Reply With Quote
Old 12-01-2012, 07:48 AM   #54
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

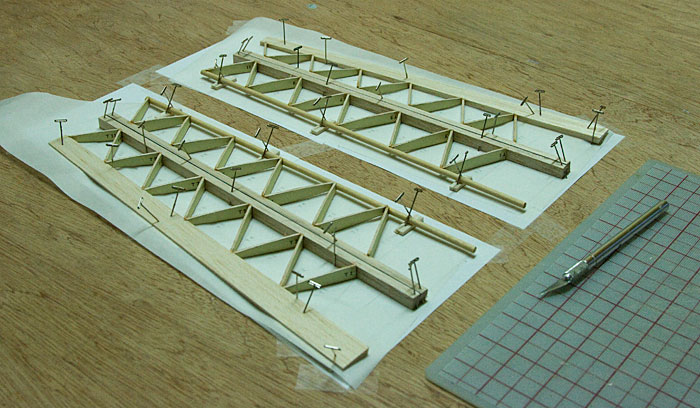

After some more CAD work I printed up a set of ribs for the tail...



I plan to use dowel for the tail's leading edge hence the curvy bits...



Rough cutting using the scroll-saw...



Pile-o-riblets...



Sanded to shape using the belt-sander...



Printed up a set of plans...

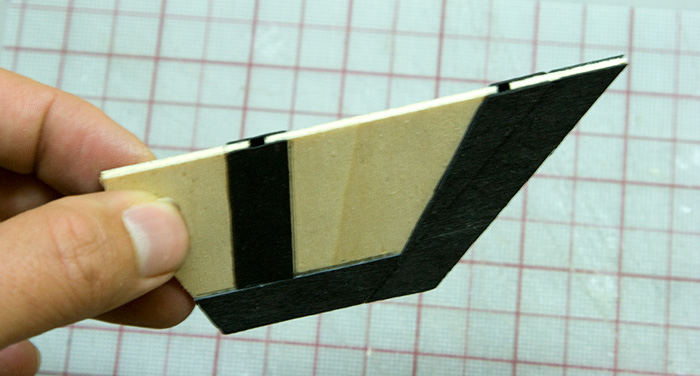

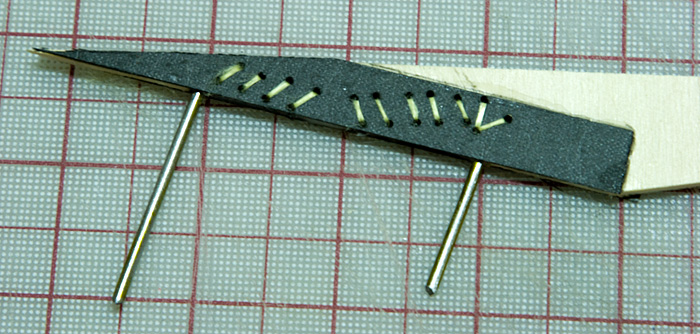

I'm using a thin strip of carbon-fiber to stiffen up the tail's main-spar...



Glued the carbon-fiber to the spars...

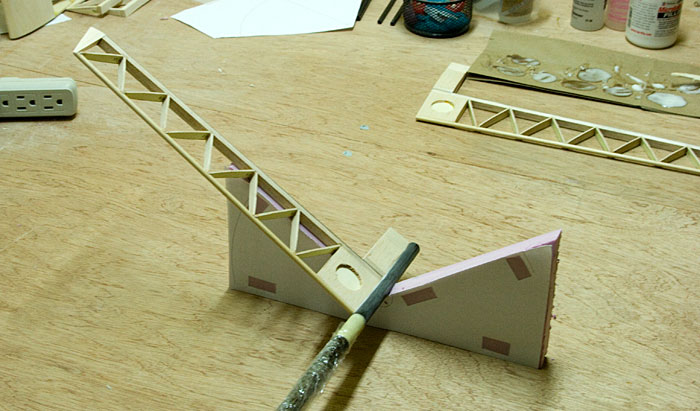

Time to start putting this together...



Everything was going great until I looked up at the clock. Doh' it's 1am, time to call it a day...



I expect I'll get these finished up tomorrow, I'm off to bed Zzzzzz...

Nodd is offline
  Reply With Quote
Old 12-02-2012, 05:37 AM   #55
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

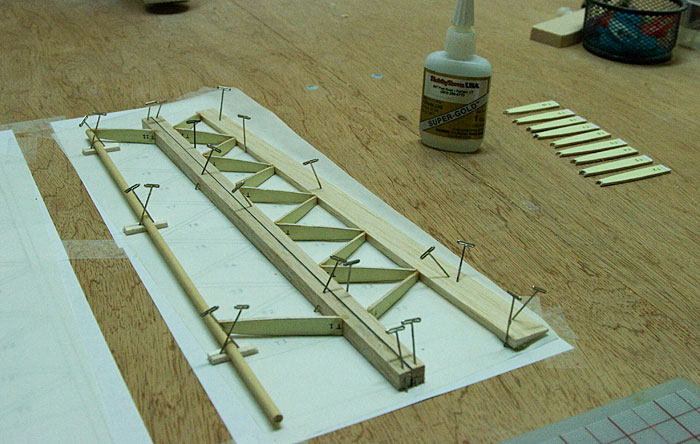

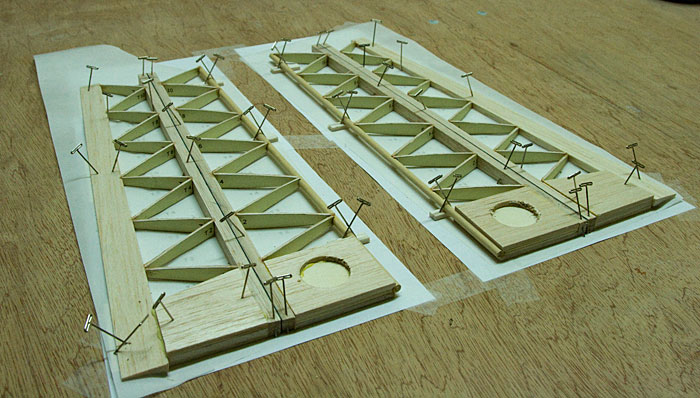

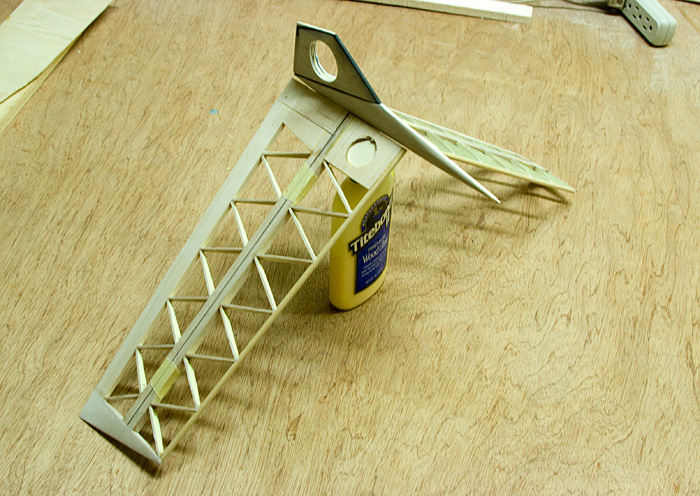

Picking right up were we left off yesterday, setting up the dowel leading edge...



More progress...

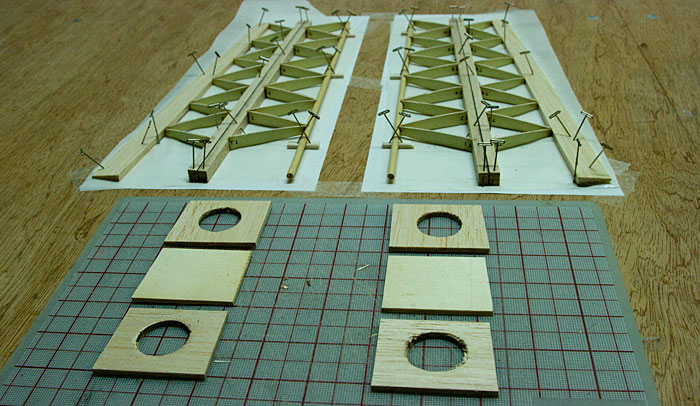

Here's some pieces that'll makeup the root area. Going to layer balsa - light ply - balsa...



Root area built up & reinforced...

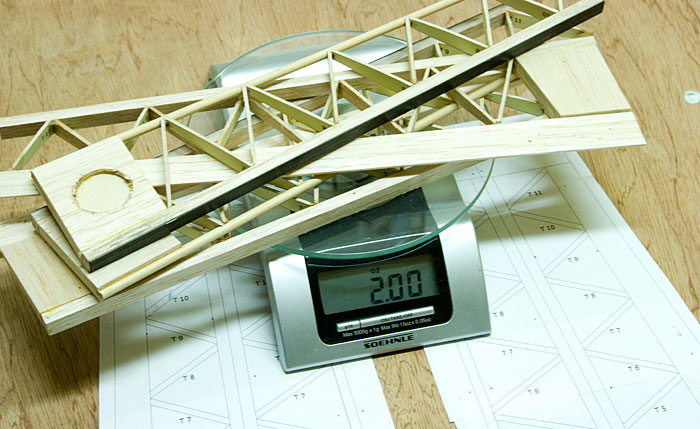

When I did my balance test the other day it took 4 oz on the tail-boom to make her sit level. It looks like we're well within limits so far...

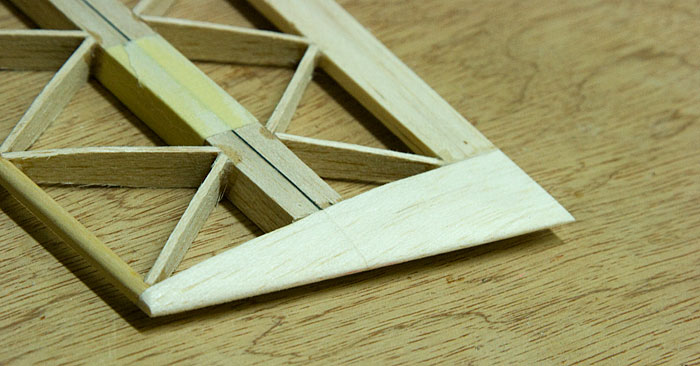

Added some fancy tips...



Seeing what she looks like...



This tail feels sooo much stronger than the original, loving those diagonal ribs.

Nodd is offline
  Reply With Quote
Old 12-02-2012, 03:32 PM   #56
Turner
Super Contributor

Turner's Avatar

Join Date: Sep 2009
Location: Tallahassee, FL
Posts: 1,377
Thanked 130 Times in 128 Posts
iTrader: (1)
Friends: (3)
Default

You are an inspiration to this 60 year old wannabe builder. Great work.
Turner is offline
  Reply With Quote
Old 12-03-2012, 06:43 AM   #57
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Sounds like it maybe time to go buy some balsa Turner *smile*

More overly engineered fun...

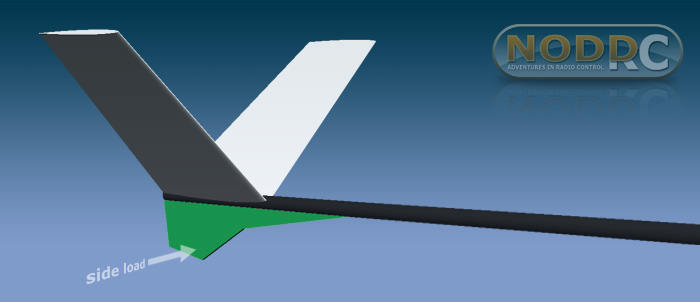

I've been thinking about how much abuse my sub-fin is likely to take during landing, especially if I catch a wing-tip & the tail hits sideways...

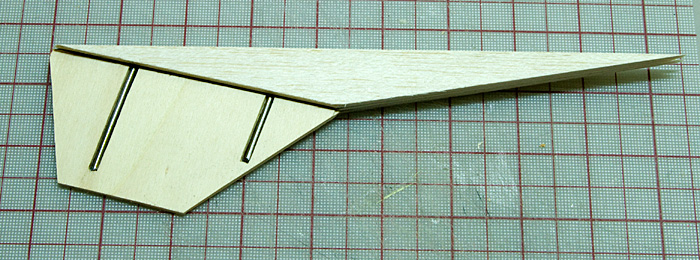

I've decided to build in a little insurance, a sub-fin that'll bend instead of brake...

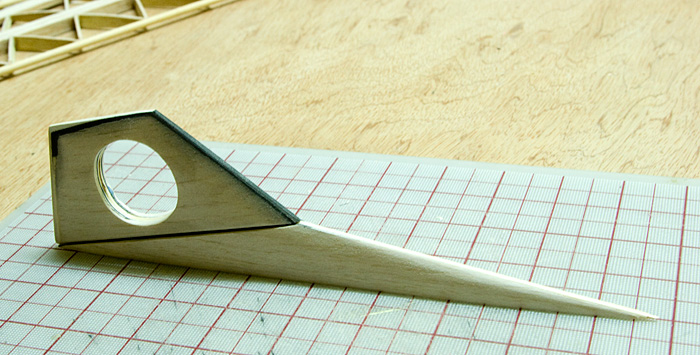

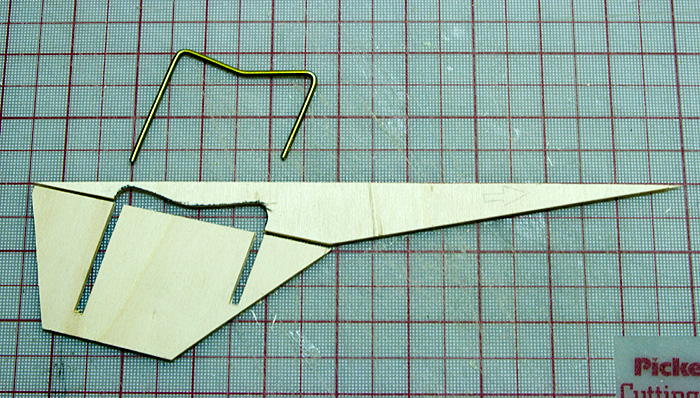

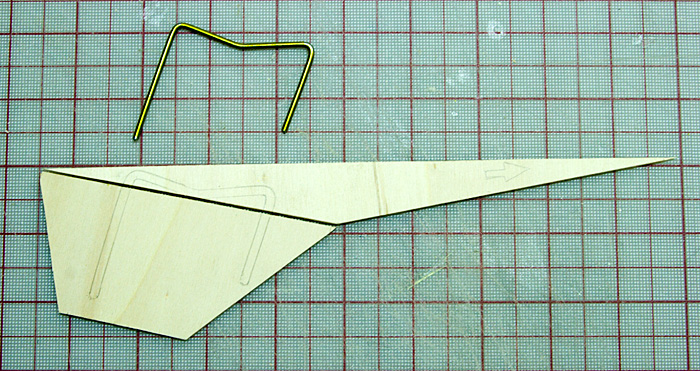

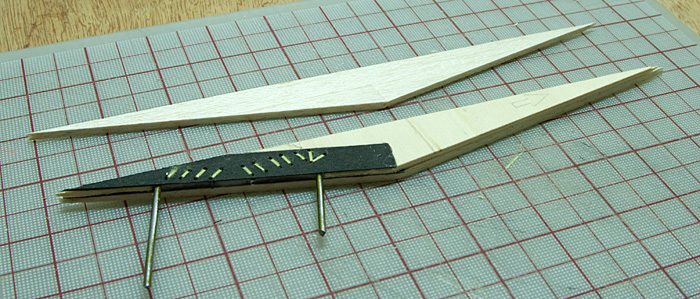

As you can see its made from two pieces of ply. Holding them together will be some coat-hanger wire. It's soft enough to bend if she hits hard, hopefully absorbing the impact instead of just snapping off...

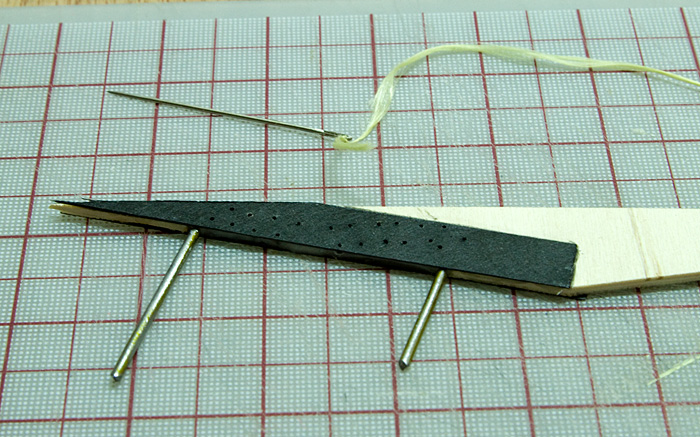

I layered carbon-fiber either side then drilled holes...



Some Kevlar thread & plenty of epoxy holds the wire in place...



Added light balsa on the sides to hide the uglies...



That takes care of that, next is the lower fin part...



More carbon-fiber, mostly to keep the wire in place but also for ding protection...



Sanded the other piece to a nice smooth shape...



More progress on the sub-fin...

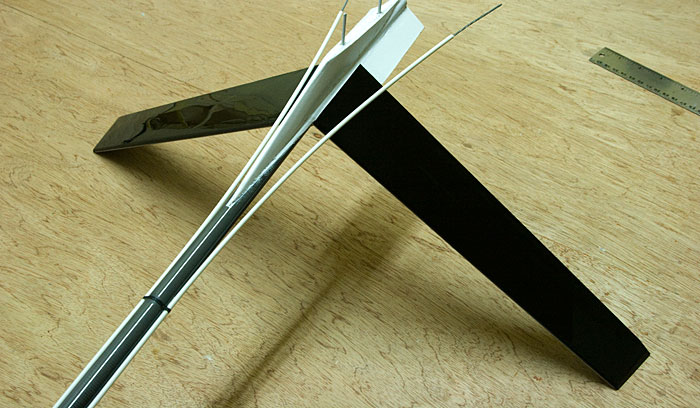

Test fit. Note I added a slight bevel where the two pieces join. Like a rudder's hinge, this should allow the fin to bend if need be...



Well that was fun...


Nodd is offline
  Reply With Quote
Old 12-07-2012, 03:05 AM   #58
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Time for another balance test

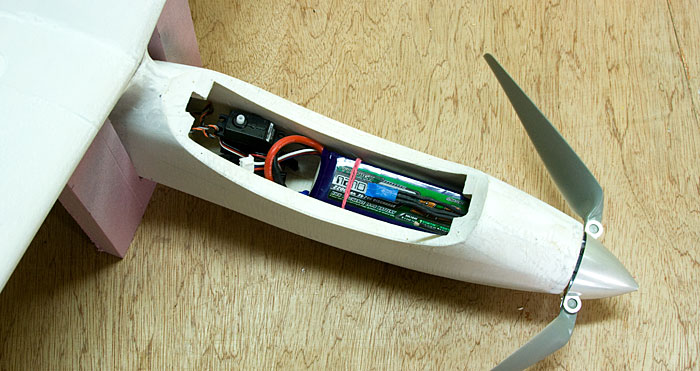

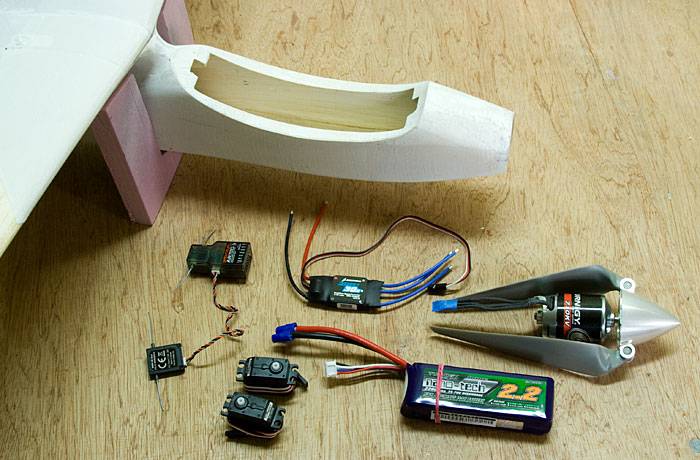

All this stuff needs to fit in there...



Yes! It fits...

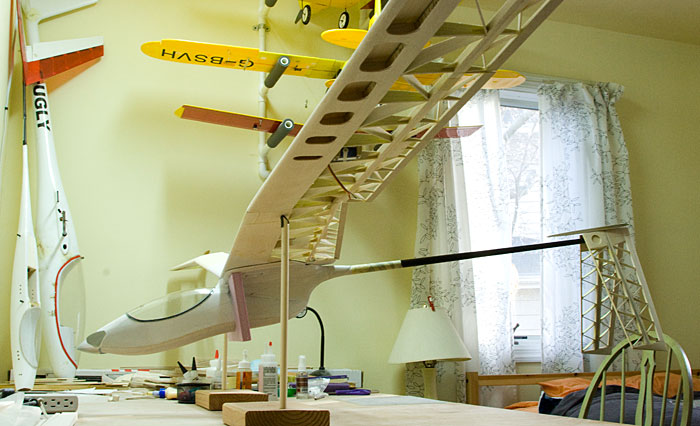

Slung the tail over the boom & stuck her up on the balance stand. It looks like we're a tad nose heavy...



I'm okay with nose heavy at this point. The tail still needs to be glued on there & covered, push-rods & other hardware added, that'll all add weight to the tail.

110

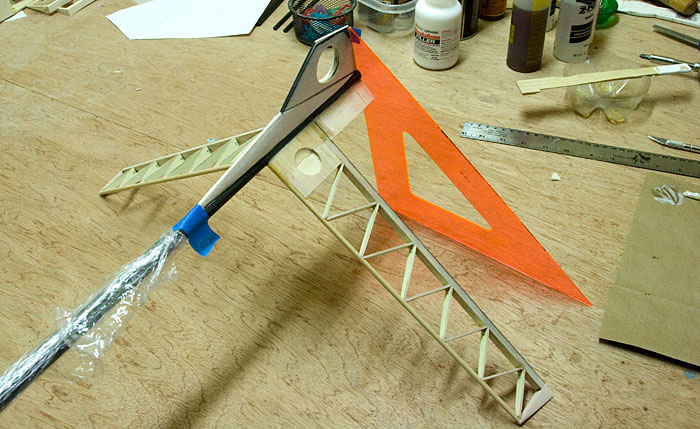

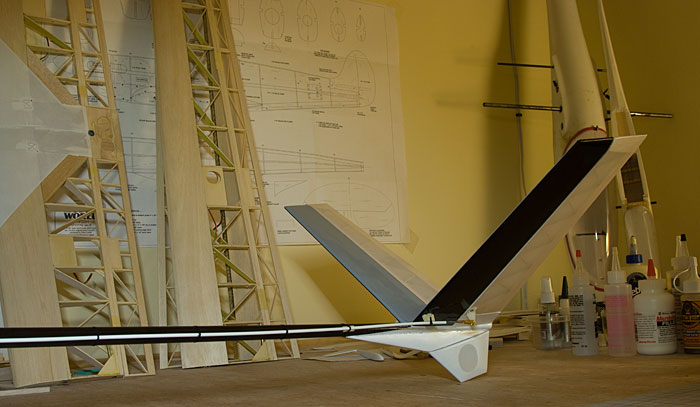

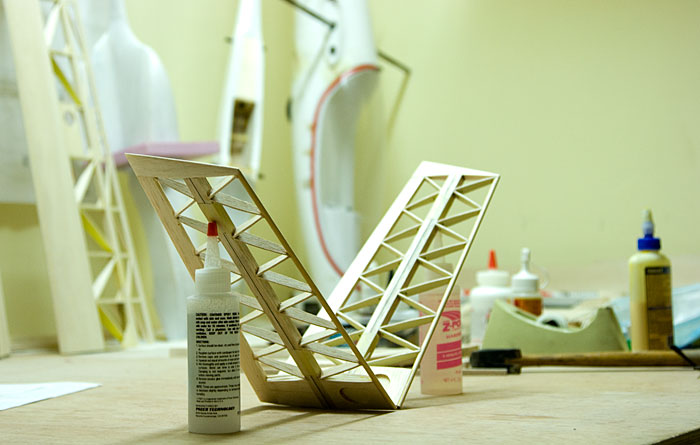

Happy with the balance I set up a jig & started gluing the V-tail in place...



Lots of measuring, eye-balling & more measuring...

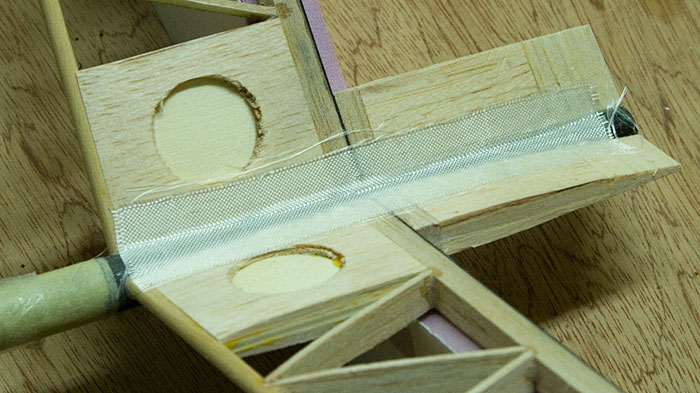

Added a strip of heavy glass cloth...



I'll let this setup over-night, should be able to get the sub-fin on there tomorrow & finish up the glass reinforcements...


Nodd is offline
  Reply With Quote
Old 12-08-2012, 07:24 AM   #59
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

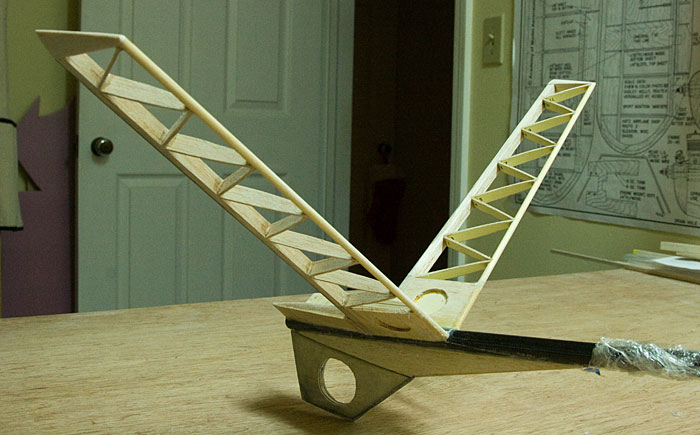

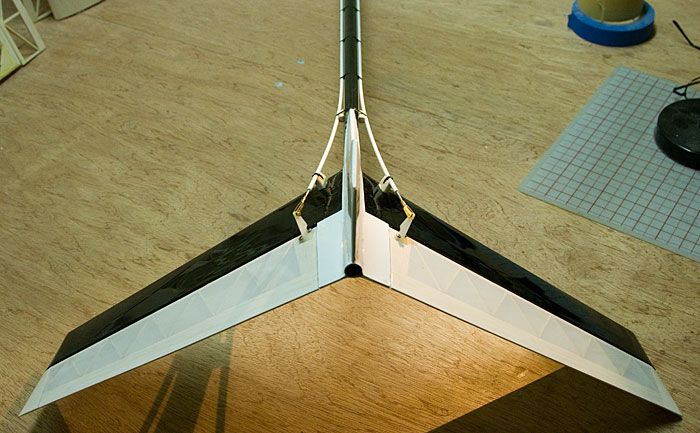

Time to turn this V-tail into a Y-tail...

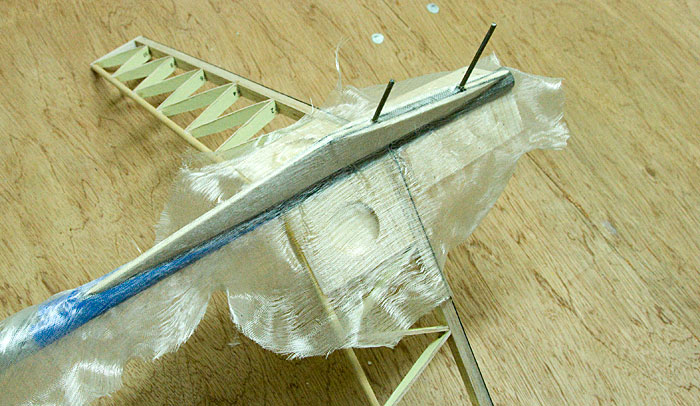

Added some feather-light 3/4oz glass...



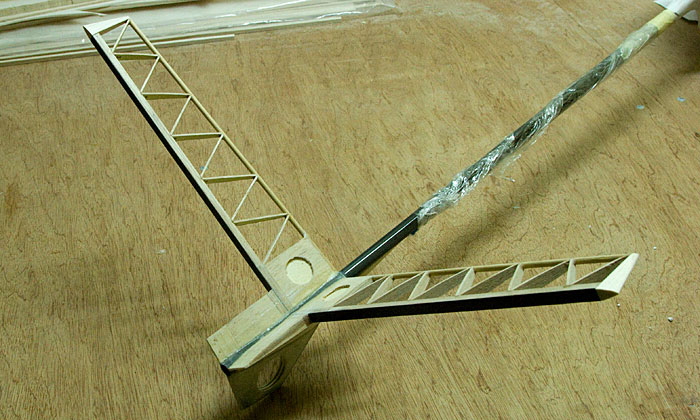

Yeap that's one odd looking tail alright...



I need to mount up the ruddervators still but we have a tail... yay!


Nodd is offline
  Reply With Quote
Old 12-08-2012, 08:05 AM   #60
mclarkson
Super Contributor

mclarkson's Avatar

Join Date: May 2010
Location: Wichita, KS
Posts: 3,018
View mclarkson's Gallery4
Thanked 182 Times in 180 Posts
Awards Showcase

Scratchbuilders Award  Outstanding Contributor Award
iTrader: (0)
Friends: (7)
Default

Continuing to look amazing!

mclarkson is offline
  Reply With Quote
Old 12-08-2012, 09:30 PM   #61
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

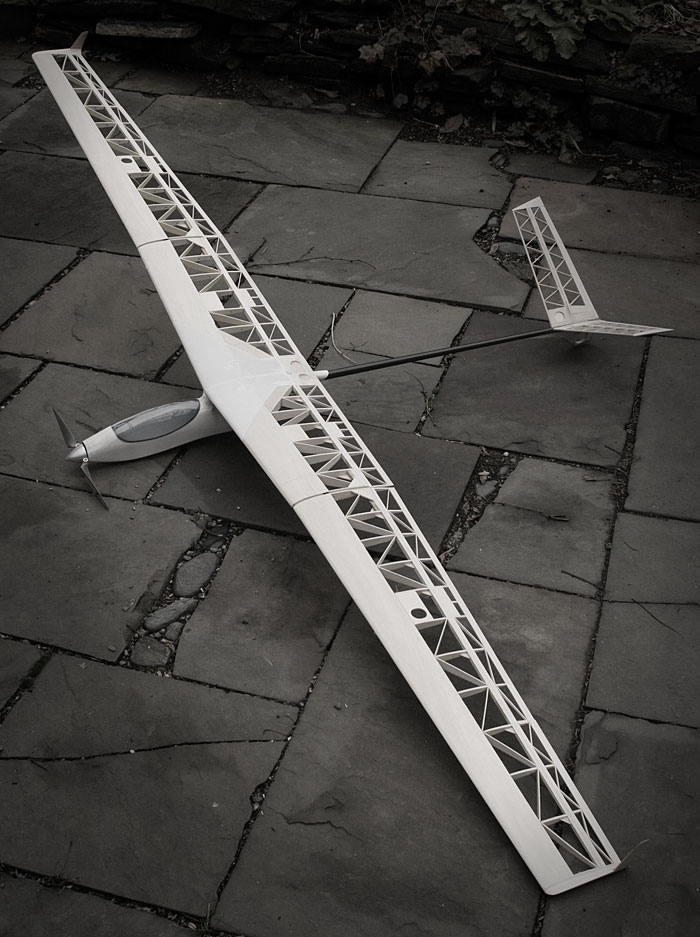

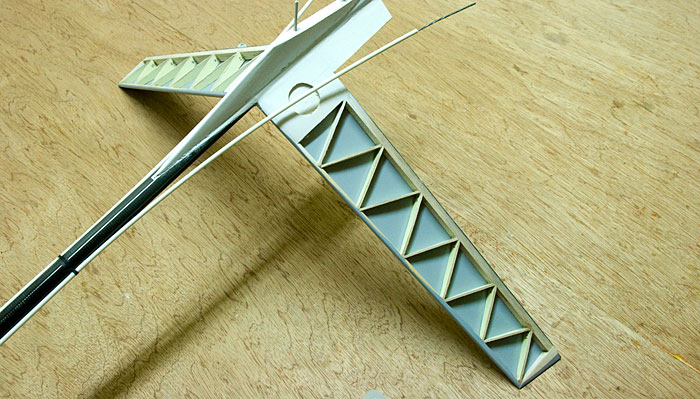

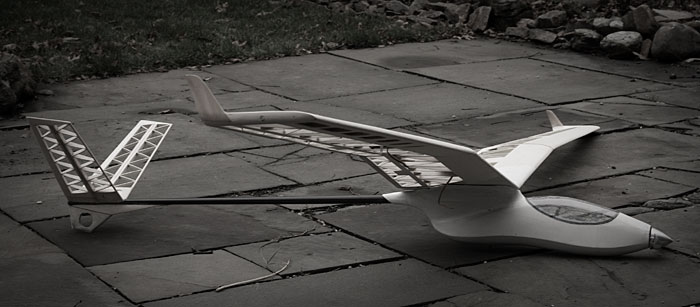

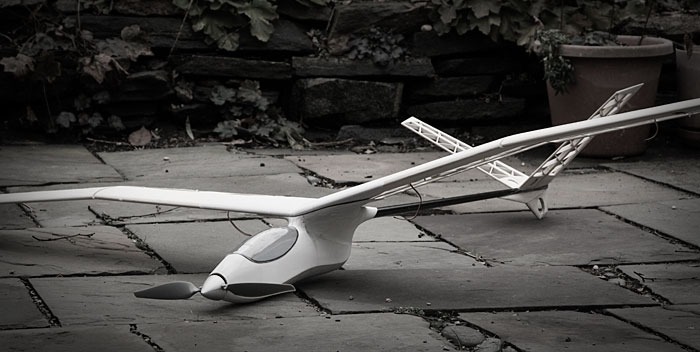

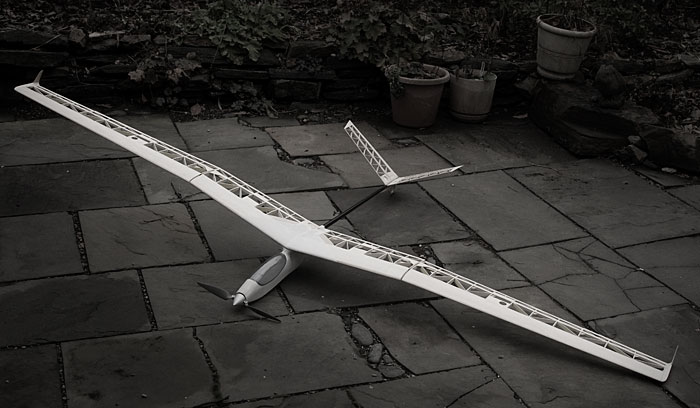

Airframe complete!
Time to stand back & take a look...











There's still plenty to do so back to the workshop...

Nodd is offline
  Reply With Quote
Old 12-08-2012, 10:40 PM   #62
mclarkson
Super Contributor

mclarkson's Avatar

Join Date: May 2010
Location: Wichita, KS
Posts: 3,018
View mclarkson's Gallery4
Thanked 182 Times in 180 Posts
Awards Showcase

Scratchbuilders Award  Outstanding Contributor Award
iTrader: (0)
Friends: (7)
Default

Amazingly nice.

mclarkson is offline
  Reply With Quote
Old 12-09-2012, 12:06 AM   #63
riverrat
circa: 1946

riverrat's Avatar

Join Date: Jul 2008
Location: Eulonia, Ga.
Posts: 478
Thanked 35 Times in 34 Posts
Club: NRA Life Member
iTrader: (0)
Friends: (27)
Default

Originally Posted by mclarkson View Post
Amazingly nice.

I'll second that Mark.

Waiting for a maiden video Nodd.

Regards
Jimmy
riverrat is offline
  Reply With Quote
Old 12-09-2012, 12:39 AM   #64
vicrider
Member

vicrider's Avatar

Join Date: Dec 2011
Location: Claremore, Ok
Posts: 100
Thanked 4 Times in 4 Posts
iTrader: (0)
Friends: (0)
Default

That is some fantastic work.
vicrider is offline
  Reply With Quote
Old 12-09-2012, 10:48 AM   #65
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 4,491
Thanked 492 Times in 458 Posts
Awards Showcase

5kW  Outstanding Contributor Award  1kW
iTrader: (0)
Friends: (8)
Default

Superb work, very distinctive!

Does it look like the Cg will come out ok?

Edit... I see you checked the CG... looking good!
JetPlaneFlyer is online now
  Reply With Quote
Old 12-09-2012, 04:31 PM   #66
Yakfishingfool
Member

Join Date: Sep 2012
Posts: 174
Thanked 2 Times in 2 Posts
iTrader: (1)
Friends: (1)
Default

Wow!!!!
Yakfishingfool is offline
  Reply With Quote
Old 12-09-2012, 08:41 PM   #67
CHELLIE
Super Contributor

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 18,677
View CHELLIE's Gallery13
Thanked 2,181 Times in 2,088 Posts
Club: Chino Renegades RC Flying Club
Awards Showcase

Scratchbuilders Award  Scratchbuilders Award  Ambassador Award  100mph Speed Demon
iTrader: (4)
Friends: (314)
Default

Very Very Nice Build

I may be getting Older, But I Refuse to grow Up I am Having to much Fun to Grow Up LOL
CHELLIE is offline
  Reply With Quote
Old 12-09-2012, 09:17 PM   #68
stevecooper
Super Contributor

stevecooper's Avatar

Join Date: Aug 2006
Location: Shadeville Fl,
Posts: 7,040
View stevecooper's Gallery86
Thanked 518 Times in 501 Posts
Club: Mullet Mauroders
Awards Showcase

WAA-08 Pilot  Outstanding Contributor Award
iTrader: (2)
Friends: (88)
Default

Good work, and a great looker too,,, wish I'd seen your thread earlier, thanks', bubsteve


Attached Thumbnails
Click image for larger version

Name:	planes 198.jpg
Views:	164
Size:	95.7 KB
ID:	164758

Monkey Minion'air
stevecooper is offline
  Reply With Quote
Old 12-10-2012, 03:37 PM   #69
soarrich
Soarrich

soarrich's Avatar

Join Date: May 2012
Location: NJ, USA
Posts: 152
Thanked 8 Times in 7 Posts
Club: JCSF & MMAC
iTrader: (0)
Friends: (0)
Default

Very cool. The B&W looks classy.
soarrich is offline
  Reply With Quote
Old 12-17-2012, 02:44 AM   #70
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Thanks folks. I really appreciate the kind words & encouragement. I'm pretty excited at how she's coming out. This squirrel wasn't all that impressed though...

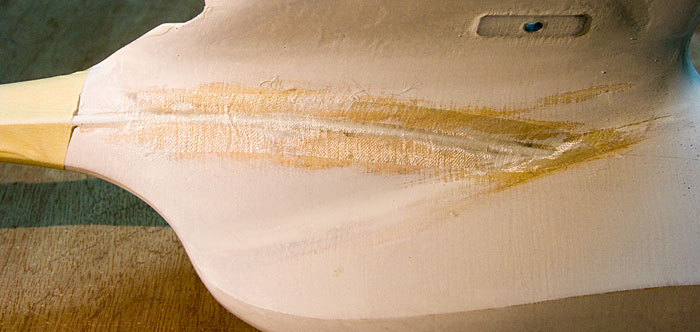

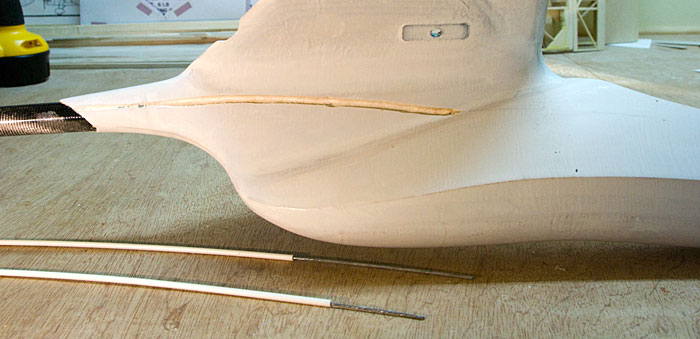

And then I carved a bloody great gash in the side

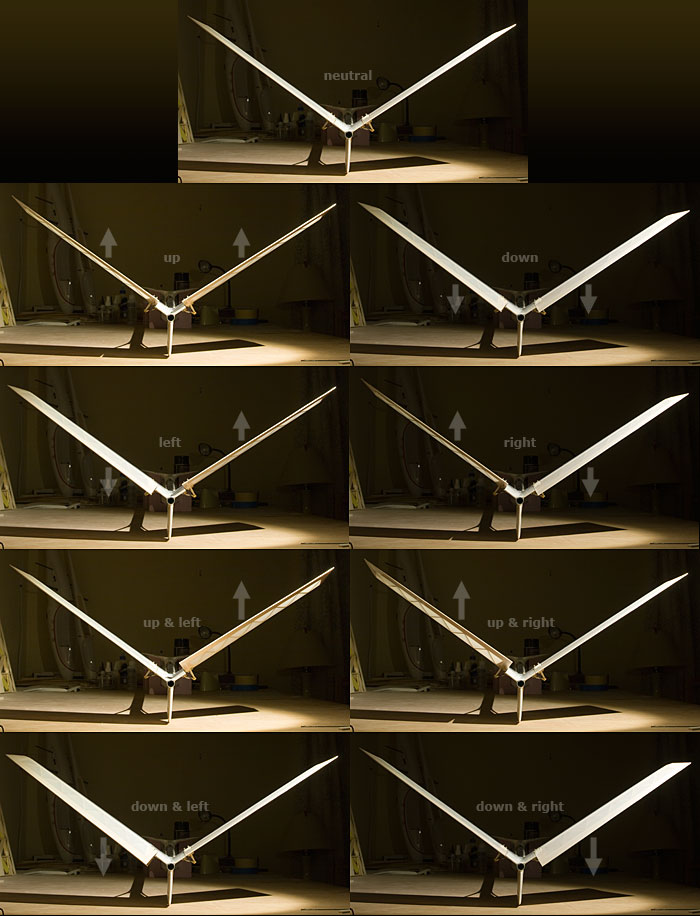

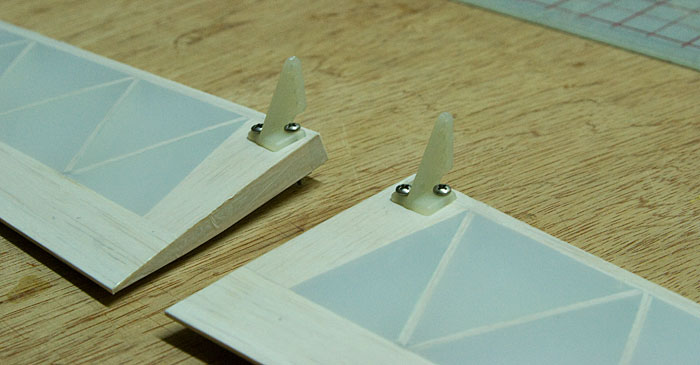

Apparently I spaced on the need to actually control my fancy Y-tail. Some push-rods would have been nice. Oh well, too late now. Time for some minor surgery...



Glued the push-rods in place...



Replaced the fiber-glass...



And then I cut bloody great holes in the side too

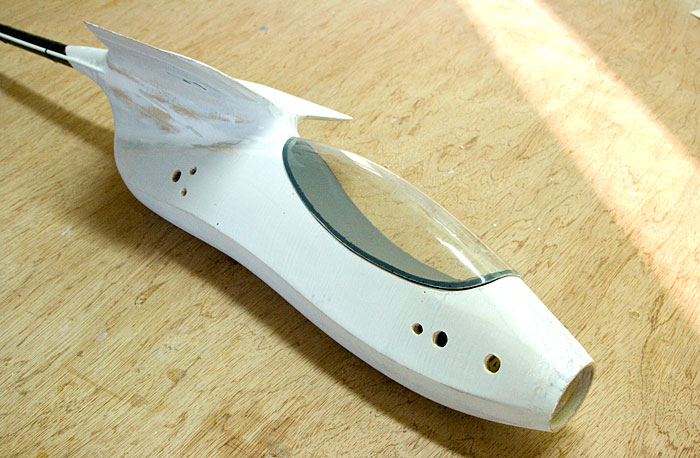

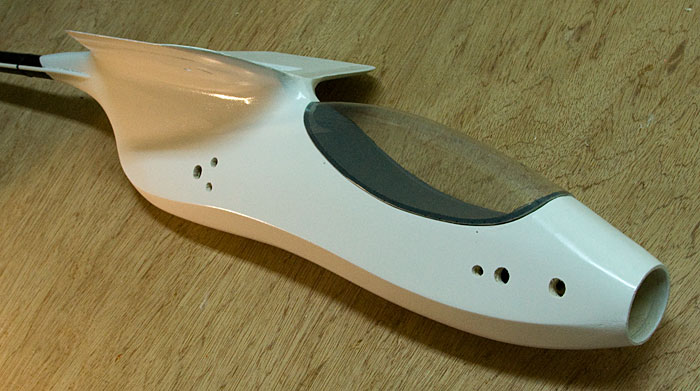

Yeap more carnage. She needs to breath so I added some cooling holes...



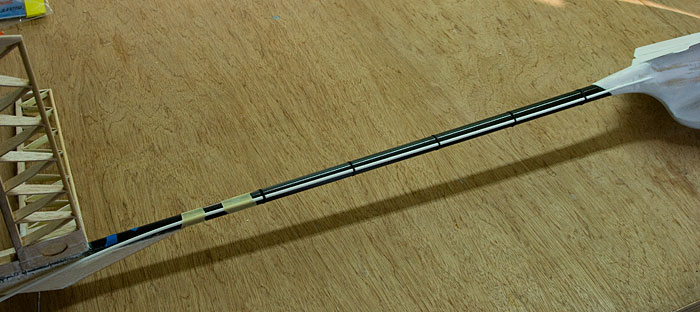

External push-rods
Again if I'd planned ahead a little better I could have run the push-rods down inside the tail-boom but space-case here was only thinking three or four steps ahead instead of 10. The push-rods will run externally, oh well...



I used cotton thread every few inches to secure the push-rods then added a little glue to lock it in place...



Paint

A few coats of glossy Krylon & she's looking good...



Wonky servos
You'll notice my servo tray here looks a little odd...

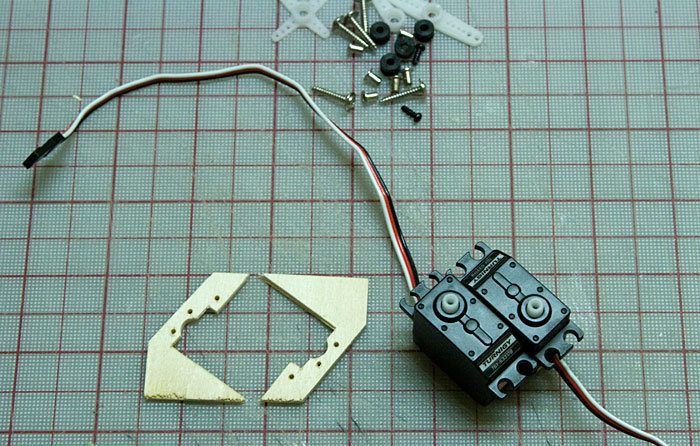

The V-tail servos are mounted diagonally to allow the control arms to be centered away from the narrow fuselage's sides...



I also managed to squeeze the motor, ESC, SBEC & receiver in there too...



Feels good to have the radio installed. Now I need to figure out how to squeeze a LiPo in there too.

Nodd is offline
  Reply With Quote
Old 12-17-2012, 03:09 AM   #71
soarrich
Soarrich

soarrich's Avatar

Join Date: May 2012
Location: NJ, USA
Posts: 152
Thanked 8 Times in 7 Posts
Club: JCSF & MMAC
iTrader: (0)
Friends: (0)
Default

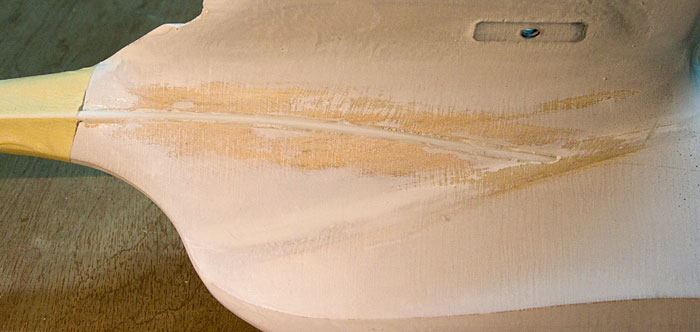

I love the hard chine on the fuse. I would have just sanded it off without ever thinking about it, it really adds a distinctive look.
soarrich is offline
  Reply With Quote
Old 12-22-2012, 04:57 AM   #72
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Yeah I didn't plan on the hard chine look, the idea just came to me after staring at the partially sanded fuse late one night. Glad I took the time to stand back & look at her some.


Covering Time

My Ultracote finally arrived so time to start covering these bare-bones...



The top of the V-tail is gray. For the ruddervators I'm using transparent white...



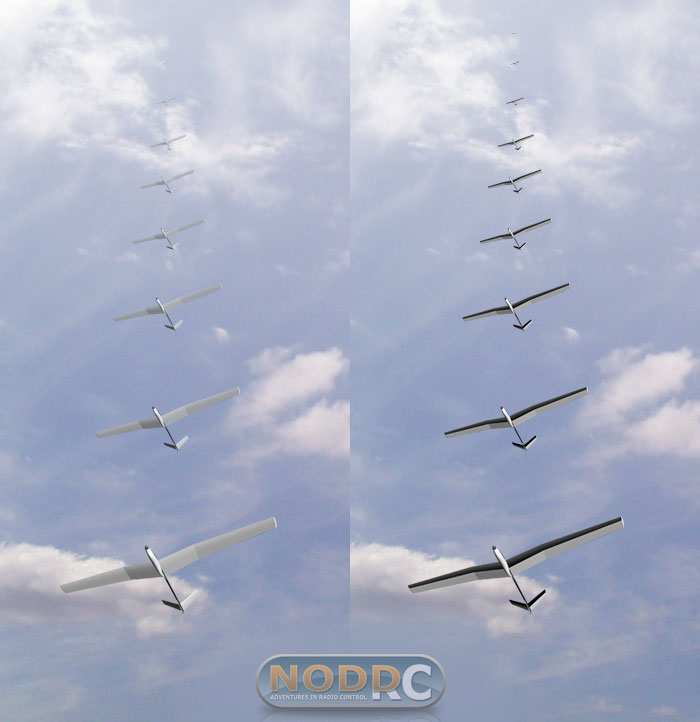

Before you all start worrying that gray & transparent white will make her hard to see at altitude, I'll be covering the underside with black...



The black contrasts well with both blue & white sky...

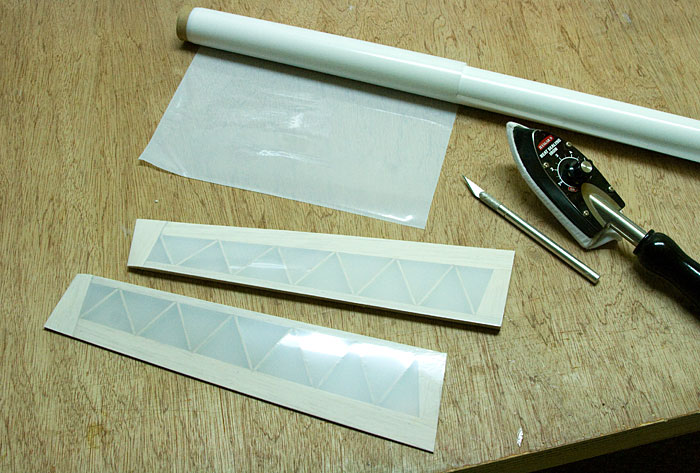

I'm liking the transparent white, looks great back lit. It shows off the structure nicely without being overly see-through...



The wings will follow the same gray & white, black on the bottom format. Sounds a bit dull? Fear not, I have some colored accent graphics in mind that'll spice things up a little. I'm hoping to get the wing covered this weekend.

Nodd is offline
  Reply With Quote
Old 12-22-2012, 05:16 AM   #73
mclarkson
Super Contributor

mclarkson's Avatar

Join Date: May 2010
Location: Wichita, KS
Posts: 3,018
View mclarkson's Gallery4
Thanked 182 Times in 180 Posts
Awards Showcase

Scratchbuilders Award  Outstanding Contributor Award
iTrader: (0)
Friends: (7)
Default

Originally Posted by Nodd View Post
The V-tail servos are mounted diagonally to allow the control arms to be centered away from the narrow fuselage's sides...
Brilliant! I'm totally stealing this!

mclarkson is offline
  Reply With Quote
Old 12-23-2012, 04:32 AM   #74
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Not sure how I came up with that idea. I was doing quite a bit of head scratching, trying to figure out how to mount the servos side by side & still have room for the control arms. Just about everything I tried either ran into the fuselage side or into the neighboring servo. Then it dawned on me, DIAGONAL! Eureka that works!


Control Surfaces

I picked up a set of control horns today & got down to hooking up the V-tail...



I've tried all sorts of hinging techniques, not sure if I'm just getting lazy but to be honest, good old tape rules for simplicity & functionality. Zero friction, zero hinge gap, zero fuss...

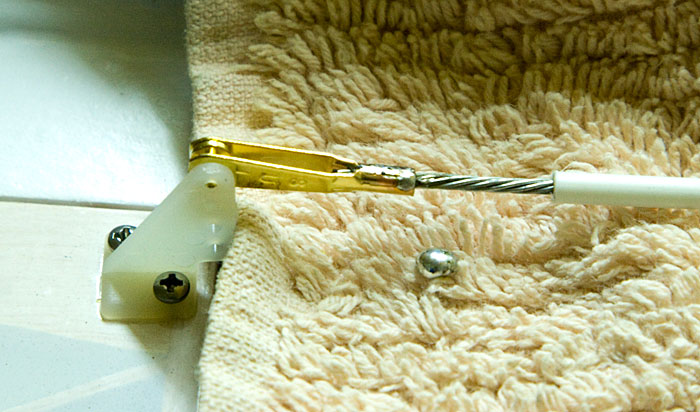

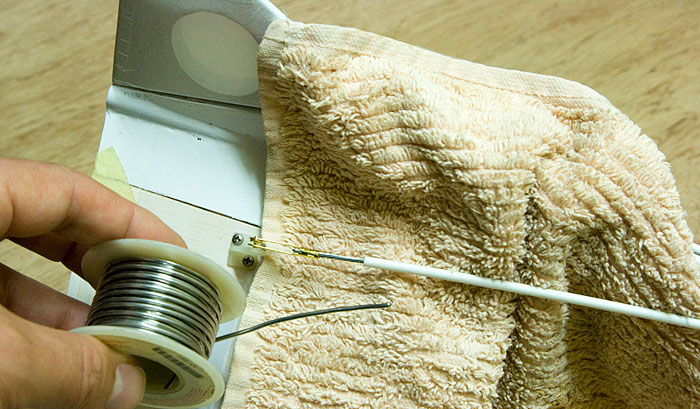

Soldering the clevises to my push-rods. What's with the towel you ask?..



Here's why we need the towel. I've had solder burn right through my covering one too many times...



A big nine foot wingspan & yet I need to make tiny fiddly little stuff like this that I can barley even see...

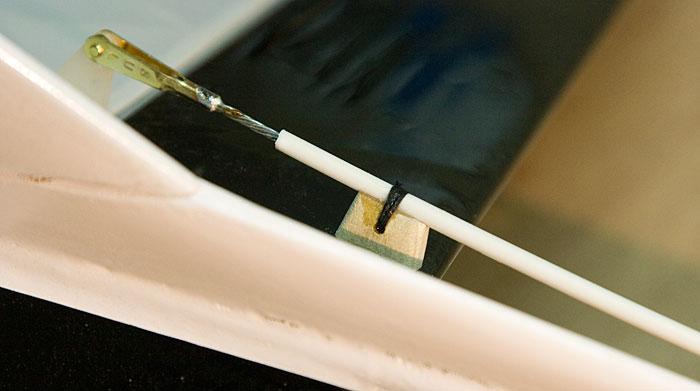

These small hardwood spacers keep the push-rods from flapping around, important for slop free linkages...



Yay we have a functional tail!..



Programming the V-tail mix...



I'll probably add some differential to the tail but for now I'm starting out with everything even.

And with that the tail is done...


Nodd is offline
  Reply With Quote
Old 12-23-2012, 05:29 AM   #75
mclarkson
Super Contributor

mclarkson's Avatar

Join Date: May 2010
Location: Wichita, KS
Posts: 3,018
View mclarkson's Gallery4
Thanked 182 Times in 180 Posts
Awards Showcase

Scratchbuilders Award  Outstanding Contributor Award
iTrader: (0)
Friends: (7)
Default

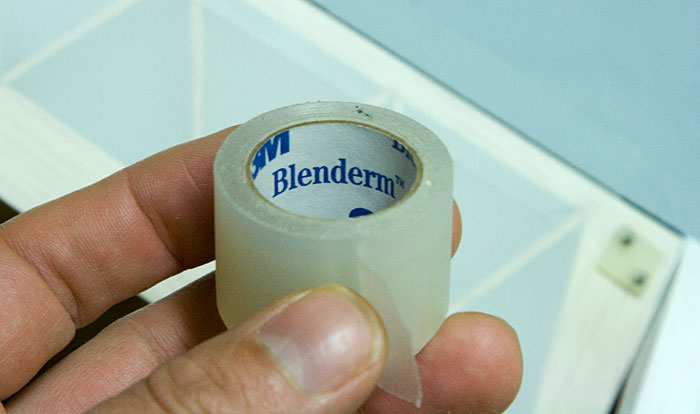

Continues to look brilliant. And I've found Blenderm to be pretty much flawless.

mclarkson is offline
  Reply With Quote
Reply

  WattFlyer RC Electric Flight Forums - Discuss radio control eflight > Electric R/C Airplanes > Scratch and Kit Built Aircraft

« Previous Thread | Next Thread »

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Steps to building delta S.P.A.D. babylon5 Delta & Flying Wings 51 08-08-2014 11:40 AM
Scratch Designed/Built Sailplane Nodd Scratch and Kit Built Aircraft 88 05-29-2012 06:49 AM
A scratch built Bachem Natter quorneng Pusher Park Jets 1 05-11-2012 03:08 PM
Choosing a Sailplane Radio - What to Consider AEAJR Hi-Performance and Sailplanes 3 04-09-2012 01:57 PM
$100 Scratch Build Contest: Simple Pylon Racer Stevephoon Scratch and Kit Built Aircraft 57 01-19-2012 02:27 AM


All times are GMT +1. The time now is 07:23 AM.


Powered by: vBulletin
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Copyright 2005 WattfFlyer.com
RCU Eflight HQ

Charities we support Select: Yorkie Rescue  ::  Crohn's & Colitis Foundation



Page generated in 0.36848 seconds with 72 queries
