Wrapping up the wing (again)
Apparently Untracote doesn't stick well to spackling. So I decided to re-mask the wing & paint the fiber-glassed center area...



Usual thing, took 20 minutes to mask her, 30 seconds to apply the paint...



Next I set about applying the covering...



Transparent white on the open structure, gray on the sheeted sections...



Love the way the light shines through the wing, that should look real nice overhead...



Well that's enough for today...


Nodd is offline
  Reply With Quote
Old 12-31-2012, 04:28 AM   #80
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

The wires don't reach
I've never been one to use pre-made servo extensions as it's not that difficult to solder together a custom length of wire if need be. Here's a great tip I picked up watching Bruce from xjet & rcmodelreviews on YouTube.

First I cut off the servo plug & find myself a spare length of servo wire...



Next I stagger-cut the wires so the connections aren't all in the same spot...



Bare the ends...



Twist them together...



Add a smidgen of solder to each...



Bend em over...



Slip a length of heat-shrink over the whole thing...



And we're good to go. I like this technique, no need to fiddle about insulating each wire separately. Thanks Bruce...



Back to the covering
I added the black visibility panels...



Started work on the outboard panels...



That'll do for now, more soon...


Nodd is offline
  Reply With Quote
Old 12-31-2012, 05:05 PM   #81
earthsciteach
Member

Join Date: Apr 2011
Location: Dallastown, PA
Posts: 952
Thanked 50 Times in 49 Posts
iTrader: (0)
Friends: (5)
Default

Thanks for the servo extension tip.

What is the wingspan on this sailplane? I'm sure you stated it, but I didn't see it as I scanned back through the posts.

All of my landings are three point landings if you count the spinner, too
earthsciteach is offline
  Reply With Quote
Old 12-31-2012, 05:28 PM   #82
HO-229
PROVERBS 27:17 ROGUE!

HO-229's Avatar

Join Date: Feb 2011
Location: Souther Maryland
Posts: 356
Thanked 17 Times in 17 Posts
iTrader: (0)
Friends: (6)
Default

Ok Nodd,
Itís strikingly magnificent but I must askÖ why did you run the V-tail controls outside the boom?
So much grace and beauty...
Your attention to detail has me wondering

Happy New Year
Dave
HO-229 is offline
  Reply With Quote
Old 12-31-2012, 06:24 PM   #83
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

The wingspan is 105" (2667mm).

Originally Posted by HO-229 View Post
Ok Nodd,
It’s strikingly magnificent but I must ask… why did you run the V-tail controls outside the boom?
So much grace and beauty...
Your attention to detail has me wondering

Happy New Year
Dave
Thanks Dave. Yeah I explained the push-rod debacle in post #70. To summarize; basically I just plain forgot about them when I was setting up the wing pylon & tail-boom. No excuses.

Nodd is offline
  Reply With Quote
Old 12-31-2012, 09:33 PM   #84
HO-229
PROVERBS 27:17 ROGUE!

HO-229's Avatar

Join Date: Feb 2011
Location: Souther Maryland
Posts: 356
Thanked 17 Times in 17 Posts
iTrader: (0)
Friends: (6)
Default

Nodd,
Nice wire work!
The method I like to use that eliminates the pig tail; I find it helpful for connecting in-line wire (splice). The loop is exaggerated; zero space is in the loop.
Dave.


Attached Thumbnails
Click image for larger version

Name:	wire splice.jpg
Views:	102
Size:	27.8 KB
ID:	165299 in-line splice
HO-229 is offline
  Reply With Quote
Old 01-02-2013, 04:15 AM   #85
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

I'm liking your loop splicing technique, yeah that gets rid of those pesky pig-tails. Nice tip, thanks.

Got-ya Covered!
Finally finished up the covering today...



I know you probably want to see how she looks assembled but I'm an evil bugger, you'll have to wait until she's complete. We're getting real close though :-)

Nodd is offline
  Reply With Quote
Old 01-11-2013, 03:56 AM   #86
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Spaghetti for Dinner

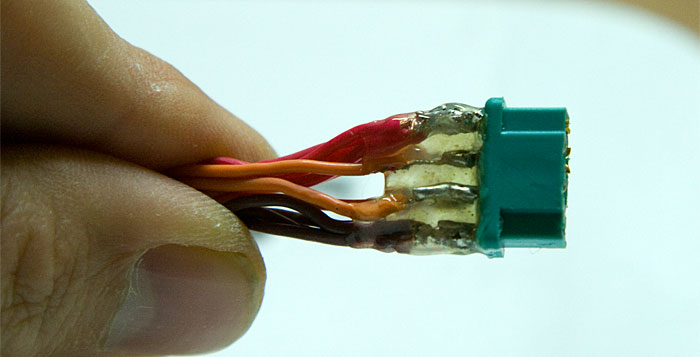

I picked up this nifty six pin connector to power the wing...



I wanted to avoid having four connectors, one for each of the wing's servos. The red positive wires connect to one pin, the brown ground wires connect to another pin. Then each of the four orange signal wires goes to its own pin...



I'm still deciding if I should glue this in solid or leaving it loose...

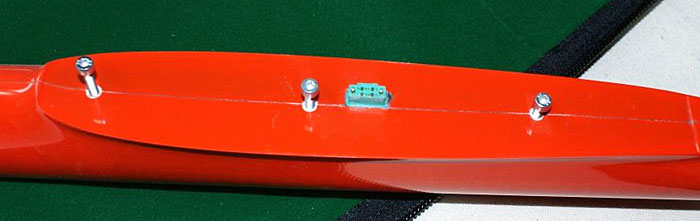

Here's the other end exiting the bottom of the wing...



Shockingly, everything seems to be working. That never happens! *grin*...



Now that the servos have power I can proceed with installing the flaps & aileron linkages.

Nodd is offline
  Reply With Quote
Old 01-11-2013, 05:28 AM   #87
kyleservicetech
Dennis V

kyleservicetech's Avatar

Join Date: Apr 2008
Location: Wisconsin, USA
Posts: 7,864
Thanked 670 Times in 653 Posts
Club: www.racinercclub.com (I'm the newsletter editor)
Awards Showcase

Outstanding Contributor Award  3kW  2kW  100mph Speed Demon
iTrader: (1)
Friends: (20)
Default

Originally Posted by Nodd View Post
I wanted to avoid having four connectors, one for each of the wing's servos. The red positive wires connect to one pin, the brown ground wires connect to another pin. Then each of the four orange signal wires goes to its own pin...
Shockingly, everything seems to be working. That never happens! *grin*...

Now that the servos have power I can proceed with installing the flaps & aileron linkages.
Oh boy!

I've got far to many years experience at work on this sort of stuff. Over 45 years worth before retiring in fact. And, a lot more than a few hundred hours were spent replacing connectors that had reliability issues. Those connectors you've selected really scare the heck out of me. The issue is zero strain relief on the wires soldered to the pins of the connectors. If to much strain is placed on those pins, they are going to bend them at the plastic shell location. Bend them once or three times, and they can break off.

I've used different connectors for my giant scale models. My Giant Scale Electric Cessna uses the 9 pin connectors. The wing is one piece, with ailerons and flaps. That takes 6 pins total. These are available from www.digikey.com, and are available in a number of different pin counts.

I've standardized on nine pins for my stuff. These connectors are well designed, and come with a locking tab so they CAN NOT come apart without releasing that locking tab.

Take a look at my thread on this connector: (These connector pins are also available with gold plating. IMHO, gold plating is not required when the connector is repeatedly connected and disconnected. My service experience shows that gold plating IS important when the connector is buried inside something, and is very rarely ever taken apart.)

http://www.wattflyer.com/forums/showthread.php?t=64209

DennyV
Retired and the days are just too short, busier than ever!
kyleservicetech is offline
  Reply With Quote
Old 01-12-2013, 05:10 AM   #88
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

You're not the only one who's expressed concerns about my connector Dennis. Although those are widely used in RC they're often anchored directly to the airframe...



With that setup, strain relief is not big issue but as you noted, I'm leaving mine lose. So at the suggestion of folks wiser than I, this is what I did...

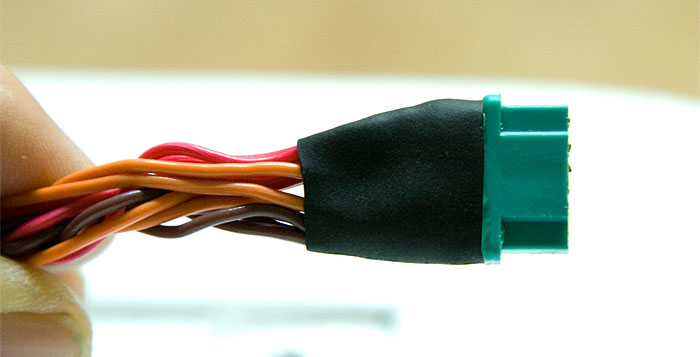

I pulled everything apart & started over. This time instead of heat shrink, I used hot-glue to bond everything together into a nice static lump-o-glue...



I figure this both insulates & immobilizes. A little heat shrink finishes her off nicely...



Not as solid as those Digi-Key connectors but I think that'll work. Also I'm thinking I'll probably not remove the wing center section all that often. The center wing isn't all that long so the fuselage & wing could likely be stored & transported as one piece cutting down on ware-n-tare not to mention spending less time at the field setting up.

That Digi-Key site is bookmarked, I'll consider those connectors for my next project. Thanks.

Nodd is offline
  Reply With Quote
Old 01-12-2013, 05:38 AM   #89
kyleservicetech
Dennis V

kyleservicetech's Avatar

Join Date: Apr 2008
Location: Wisconsin, USA
Posts: 7,864
Thanked 670 Times in 653 Posts
Club: www.racinercclub.com (I'm the newsletter editor)
Awards Showcase

Outstanding Contributor Award  3kW  2kW  100mph Speed Demon
iTrader: (1)
Friends: (20)
Default

Originally Posted by Nodd View Post
You're not the only one who's expressed concerns about my connector Dennis. Although those are widely used in RC they're often anchored directly to the airframe...

With that setup, strain relief is not big issue but as you noted, I'm leaving mine lose. So at the suggestion of folks wiser than I, this is what I did...

I pulled everything apart & started over. This time instead of heat shrink, I used hot-glue to bond everything together into a nice static lump-o-glue...

I figure this both insulates & immobilizes. A little heat shrink finishes her off nicely...

Not as solid as those Digi-Key connectors but I think that'll work. Also I'm thinking I'll probably not remove the wing center section all that often. The center wing isn't all that long so the fuselage & wing could likely be stored & transported as one piece cutting down on ware-n-tare not to mention spending less time at the field setting up.

That Digi-Key site is bookmarked, I'll consider those connectors for my next project. Thanks.
That hot melt glue would be a big improvement. As long as you're careful with the connector it should be OK.

FYI, for other readers of this thread, that hot melt glue goes exactly where you put it. It doesn't migrate all over the place like CA will. Word to the wise.

DennyV

DennyV
Retired and the days are just too short, busier than ever!
kyleservicetech is offline
  Reply With Quote
Old 01-15-2013, 12:52 AM   #90
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

Yeah no doubt Denny, I learned the hard way, CA & electrical connectors do not mix. The stuff penetrates into places you don't want it. Ruined a few connectors before I wised up. Thanks for the tip.

On with the build
I finished hooking up the control linkages...



WARNING: The following technique has the potential to go horribly wrong in all sorts of unexpected ways. If you try this take extreme care.

Although pretty close, I noticed the gap between the fuselage & spinner was pretty uneven...



Then I had an idea how to even that up. I slipped a piece of sandpaper onto the folder's hub...



Then I powered up the motor to around 10% & let the sandpaper do its thing...



That worked pretty well, nice even gap...



With the prop installed I stuck her up on the balance stands. Weirdest thing ever, she balanced perfectly, no extra weight needed. How often does that happen, especially on a scratch designed airframe?..


Nodd is offline
  Reply With Quote
Old 01-15-2013, 12:54 AM   #91
Nodd
Build something.

Nodd's Avatar

Join Date: Jan 2012
Location: Connecticut USA
Posts: 362
View Nodd's Gallery3
Thanked 18 Times in 18 Posts
Awards Showcase

Scratchbuilders Award
iTrader: (0)
Friends: (3)
Default

And then I realized there was nothing further to do...

COMPLETE!

Seven months in the making, she's finally ready to fly, woohoo!























No matter what happens from here on out, that was a great build. I've learned so much, couldn't have done it with out you folks here online. A heart-felt thanks to everyone who contributed.
wingspan: 105" (2667mm)
weight: 69 oz (1956 g)
wing loading: 12 oz/sq.ft (38 g/sq.dm)
cubic loading: 5.21 oz/cubic.ft
stall speed: 17 mph (28 km/h)
I was hoping to maiden her this Wednesday but the forecast is for rain/snow. I'll keep you posted. And yes there will be video, flight reports & all that good stuff. Thanks again everyone.

Nodd is offline
  Reply With Quote
Old 01-15-2013, 01:27 AM   #92
kyleservicetech
Dennis V

kyleservicetech's Avatar

Join Date: Apr 2008
Location: Wisconsin, USA
Posts: 7,864
Thanked 670 Times in 653 Posts
Club: www.racinercclub.com (I'm the newsletter editor)
Awards Showcase

Outstanding Contributor Award  3kW  2kW  100mph Speed Demon
iTrader: (1)
Friends: (20)
Default

Originally Posted by Nodd View Post
And then I realized there was nothing further to do...
105" (2667mm)
weight: 69 oz (1956 g)
wing loading: 12 oz/sq.ft (38 g/sq.dm)
cubic loading: 5.21 oz/cubic.ft
stall speed: 17 mph (28 km/h)
[/INDENT]I was hoping to maiden her this Wednesday but the forecast is for rain/snow. I'll keep you posted. And yes there will be video, flight reports & all that good stuff. Thanks again everyone.

Wow oh Wow

That is an impressive model and impressive build!

DennyV
Retired and the days are just too short, busier than ever!
kyleservicetech is offline
  Reply With Quote
Old 01-15-2013, 01:28 AM   #93
vicrider
Member

vicrider's Avatar

Join Date: Dec 2011
Location: Claremore, Ok
Posts: 96
Thanked 4 Times in 4 Posts
iTrader: (0)
Friends: (0)
Default

Man that thing is a work of art. Really really enjoyed this thread. Good job and good luck on your maiden.
vicrider is offline
  Reply With Quote
Old 01-15-2013, 01:40 AM   #94
CrimzonRider
Fastest PropHead Crasher

CrimzonRider's Avatar

Join Date: Nov 2010
Location: NW Oklahoma
Posts: 1,299
View CrimzonRider's Gallery18
Thanked 100 Times in 99 Posts
iTrader: (2)
Friends: (14)
Default

Simply Amazing Ship! She gotta a name yet? maybe I missed it....
Have a good one and good luck on the maiden.

cr
CrimzonRider is offline
  Reply With Quote
Old 01-15-2013, 01:44 AM   #95
mclarkson
Super Contributor

mclarkson's Avatar

Join Date: May 2010
Location: Wichita, KS
Posts: 2,796
View mclarkson's Gallery4
Thanked 170 Times in 168 Posts
Awards Showcase

Scratchbuilders Award  Outstanding Contributor Award
iTrader: (0)
Friends: (7)
Default

Gorgeous! Congratulations. I'm betting it'll fly.

mclarkson is online now
  Reply With Quote
Old 01-15-2013, 02:19 AM   #96
gramps2361
Community Moderator

gramps2361's Avatar

Join Date: Dec 2008
Location: oxford, MA
Posts: 6,589
View gramps2361's Gallery9
Thanked 598 Times in 593 Posts
Club: Rocky Hill Flying Circus
iTrader: (3)
Friends: (21)
Thumbs up

Nod another one of your stunning builds! I've enjoyed silently following along on this one I always learn something new when a build thread is going.
gramps2361 is offline
  Reply With Quote
Old 01-15-2013, 02:25 AM   #97
earthsciteach
Member

Join Date: Apr 2011
Location: Dallastown, PA
Posts: 952
Thanked 50 Times in 49 Posts
iTrader: (0)
Friends: (5)
Default

Stunning! Thank you for sharing. I learn tons from your build logs. Best of luck with the maiden!

All of my landings are three point landings if you count the spinner, too
earthsciteach is offline
  Reply With Quote
Old 01-15-2013, 03:40 AM   #98
Stevephoon
Member

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 936
View Stevephoon's Gallery67
Thanked 97 Times in 96 Posts
Club: United Flying Organization
iTrader: (0)
Friends: (7)
Default

Another great build and build thread Nodd! I'm always learning things in your builds that help. I'm planning on buying a bunch of three conductor servo wire for splicing in instead of using servo extensions. That's another good idea. Cheaper and lighter!

Steve
Stevephoon is offline
  Reply With Quote
Old 01-15-2013, 01:28 PM   #99
riverrat
circa: 1946

riverrat's Avatar

Join Date: Jul 2008
Location: Eulonia, Ga.
Posts: 424
Thanked 29 Times in 28 Posts
Club: NRA Life Member
iTrader: (0)
Friends: (26)
Default

Nodd

Kudos, & good luck
on the maiden!

Regards
Jimmy
riverrat is offline
  Reply With Quote
Old 01-15-2013, 02:58 PM   #100
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 4,259
Thanked 471 Times in 439 Posts
Awards Showcase

5kW  Outstanding Contributor Award  1kW
iTrader: (0)
Friends: (8)
Default

Magnificent work,

Best of luck with the maiden, please dont forget the video
JetPlaneFlyer is offline
  Reply With Quote
Reply

  WattFlyer RC Electric Flight Forums - Discuss radio control eflight > Electric R/C Airplanes > Scratch and Kit Built Aircraft

« Previous Thread | Next Thread »

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump

Similar Threads
Thread Thread Starter Forum Replies Last Post
Scratch Designed/Built Sailplane Nodd Scratch and Kit Built Aircraft 88 05-29-2012 05:49 AM
A scratch built Bachem Natter quorneng Pusher Park Jets 1 05-11-2012 02:08 PM
Choosing a Sailplane Radio - What to Consider AEAJR Hi-Performance and Sailplanes 3 04-09-2012 12:57 PM
$100 Scratch Build Contest: Simple Pylon Racer Stevephoon Scratch and Kit Built Aircraft 57 01-19-2012 01:27 AM
Steps to building delta S.P.A.D. babylon5 Delta & Flying Wings 50 08-15-2011 06:01 AM


All times are GMT +1. The time now is 12:03 AM.


Powered by: vBulletin
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Copyright 2005 WattfFlyer.com
RCU Eflight HQ

Charities we support Select: Yorkie Rescue  ::  Crohn's & Colitis Foundation



Page generated in 0.75596 seconds with 72 queries
