Too much Bling Flite-Metal covering is a breeze to apply and finish.

Flite-Metal

Here's one for your train transformer hot wire cutter... The Mk-15 sans parachutes (3) it slowly descended beneath.

Flite-Metal

I received email confirmation from Chris Davey, famous aviation illustrator for Osprey and other aviation
press that he shipped the 1980 Aviation News containing a centerfold of the Boeing B-47 and the inked
vellum illustration of the B-47 he drew for it. The magazine illustration is 1:72nd, and vellum is 1:48. I
will use these as the multiple view drawing in my static binder.

You will recall Richard sent me a small left hand panel image of this drawing. I had identified it as the most
accurate multiple view B-47 drawing for the B-47E by comparing to photos and the other drawings I have.
Documentation presented contests must be published documents. When compared to my other multiple
view drawings, these are superior.

Flite-Metal

Chris's drawings and the 1980 news print Aviation News arrived. More after I review them.

Flite-Metal

Outboard Nacelle Dims @ 1/8.7669

Length: 25.136593"

Width: 4.5626"

Heighth: 5.5136"

Flite-Metal

Where are we now (June 23, 2013)

If you have reached this post from the beginning...congrats! You are well armed to build your own
Boeing B-47 Stratojet.

Chris Davey drew a 1:48th multiple view for Aviation News' 18 x 28 newsprint centerfold where it
appears in 1:72nd scale. Each month, this now extinct newsprint scale aviation rag focused on a
FAMILY of aircraft, looking at each subject from their intended use perspective.

In this explicit case...the world's first swept wing jet bomber.

Chris's 1:48th original drawing was reproduced @ 1:72nd and portions overlapped to permit them to
fit the front and back of the single folded centerfold sheet within Aviation News. This is not what I
was in need of. I needed each individual perspective to permit their use as my judge's tools.



Armed only with the a small scanned image of half the center fold face Richard emailed me, I searched
the net to find a 1:1 of the centerfold and came up empty. Yes, I went through Osprey's UK offices via
email but no one forwarded my inquiry to Chris. Two months later there still was no reply.

Finally I found favor with an editor in the New York office when I mentioned USA's F4C team effort I am
making. Finally I was taken seriously! Two days after inquiring... My email was forwarded to Chris. 10
days later after thinking I had failed again...on Sunday evening, I received a reply from Chris saying he
had both a Sept. 12th, 1980 issue Vol. 9 Number 8 of Aviation News and his original inked vellum multiple
view B-47 drawings.

Chris had debated down sizing as he nears his retiring, my inquiry tipped the scale to do so.

Flite-Metal

USAF Film Footage Showing four of ten flight maneuvers required when competing.



Immelman: (LABS Low Altitude Bombing System) Note: Heading Change w/and w/o RATO.
Cuban Eight: (Immelman w/Late Roll Out & High Angle Return To Low Altitude) Note: Heading Change
Barrel Roll: (W/altitude Differential)
Landing: (Approach ~ Touchdown With Cross Wind)

LABS: (As found in a Russian Fighter Pilot Manual)

Flite-Metal

Immelman: (LABS Low Altitude Bombing System) Note: Heading Change w/and w/o RATO.
Cuban Eight: (Immelman w/Late Roll Out & High Angle Return To Low Altitude) Note: Heading Change
Barrel Roll: (W/altitude Differential)
Landing: (Approach ~ Touchdown With Cross Wind)

The most difficult maneuvers to perform with this model. Considering it is an electric, preservation of energy
is manditory, even with 20kw onboard. Maneuvers are flown from from highest altitude down through to final
approach with the Immelman, aka LABS, being the highest consumption.

FAI Flight sequence is different from AMA, Scale Masters, or Top Gun in that there are no repetitive element
from maneuver to maneuver.

For example:


Labs maneuver and Cuban Eight are differentiated by 90~110 degree release of the Mk15. Mk-15 has three parachutes released at its path apex to slow descent permitting B-47 to dive away on opposite heading to
escape bomb blast wave.

Flite-Metal

Discovered another 13.xxx foot wingspan B-47... Being constructed by "Bernie" in Lost Wages, NV.



Greg, Bernie's friend says this was drawn by Bernie using a Revelle plastic model. Canopy is from an RCLander
T-33. Retract mains appear to be RCLander's all metal electric retract, identical to the unit we chose for our
out rigger retracts. These are rated at about 14# each. Surprised to see them on an estimated 40# AUW.

Bernie uses six 90mm edf...no specifics. Flap motion is via a brass torque tube driven at three locations from a
long wood tiller arm and rod attached to tube at right angle to its length.

Bernie was emailed an invitation to share details of his project, we'll see.

Capt G

These main gear are actually E Flite mechanisms with home made struts using HD springs. Outriggers will be smaller e flite gear.

Flite-Metal

Early on I considered using those for our outriggers but they were out of stock for a year. Horizon had issues with the manufacturer who took forever to deliver. We already had Robart 160 tailwheel retracts for our mains. They are converted by Down & Locked with ma long screw jack.

Electric RC Lander outrigger mechanics are configured in steerable mode with left and right springs to bring them to center complying to force during turns. The 1:1 swivel is 24~26 degrees to inside and about half that to the outside.

The outriggers are piano hinged across rear side of mounting plate so when an abrupt hault occurs the force will sheer a single nylon screw and swing rearward to a point where it will keep wing elevated and not drag runway or ground.

Glad to see Horizon has their 120 size electrics again. Would be interesting to compare the Horizon to the RCLander mechanics.

Flite-Metal

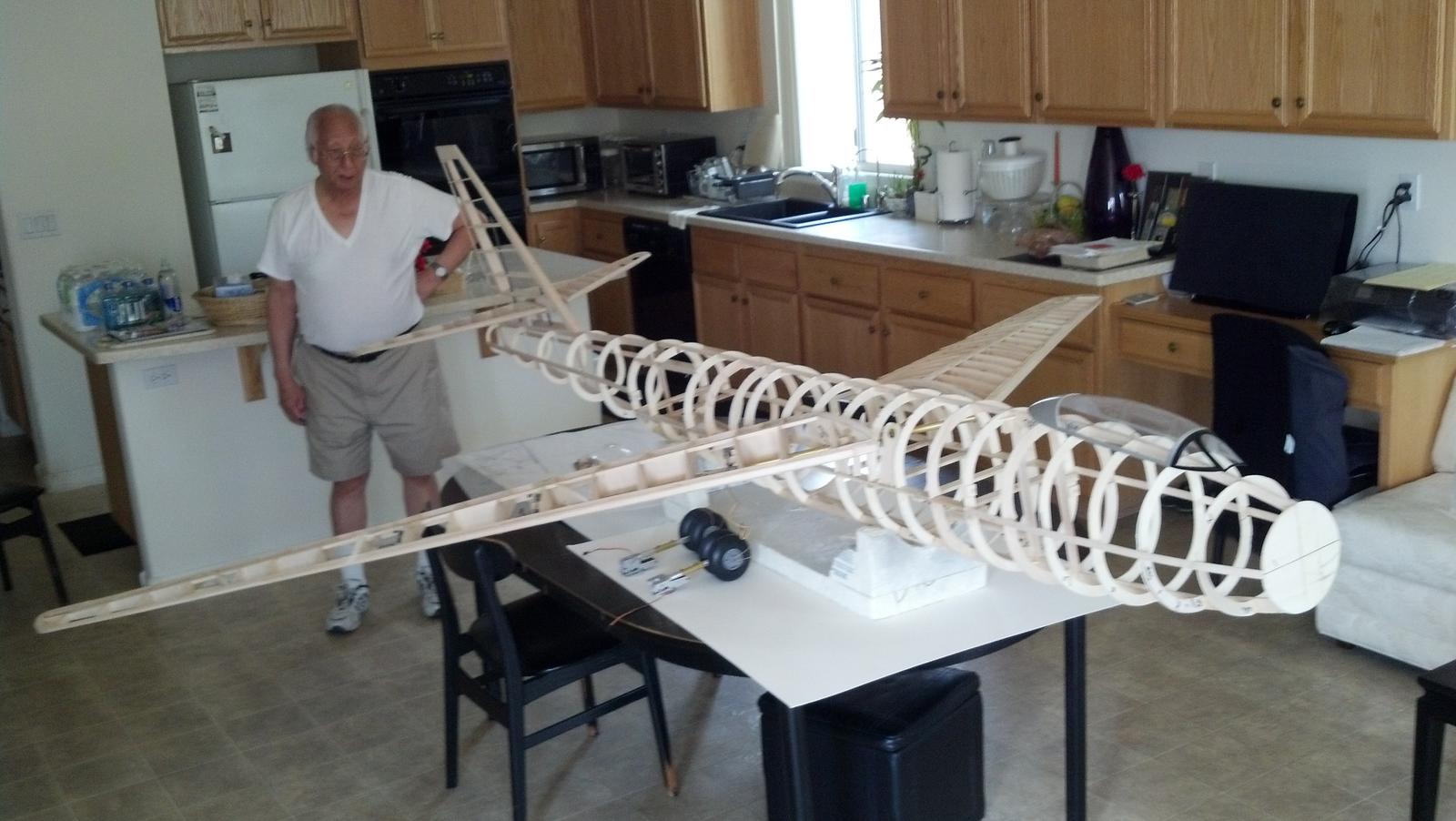

I enjoyed a short conversation with Bernie Leung last evening. His B-52's were as much of
our discussion as the B-47. All of his work is built up from stick and formers. He will plank
then sand to shape.

This is followed by sealing, resanding, then either prime and paint or tissue, prime and paint.
For those unaware, back in the day...we sealed and sanded to an excess to achieve the look
of the real thing...metal.

pattern14

With all the foam these days, that looks refreshingly good Is there really a place called "Lost Wages".....? and how come he gets to build in his kitchen?

Flite-Metal

When you are 82 years old you can pretty well tell her what's where and for how long. 180 degrees in the other
direction is the dining room. This is the 20' between kitchen and formal dining room.

This is anticipated to be 44~48# AUW with batteries. Ironically, I expect ours to weight the same AUW. Ours,
sans batteries, has to be at or under 15Kg.

You have apparently never been to Las Vegas, NV or you would understand... ;^)

pattern14

Does that mean I have to wait another 30 years to build inside the house??? ...and no, I don't gamble...

Flite-Metal

I have always considered myself fortunate. My wife has her own hobbies, in the house, where its either
cool in summer or warm in winter...why?

Your statement made it sound as if your personal groceries might be piled up in your shop after you and
she return from the grocery? Are you permitted to enjoy air conditioning...which she probably has in all
areas within the home...except probably your shop?

Not to sound selfish... What did you do, or not do on her last birthday?...less your opinion on woman's suffrage...

"By marriage, the personal identity of the woman is lost. Her person is completely sunk in that of her
husband, and he acquires an absolute mastery over her person and effects. Hence her complete
disability to contract legal obligations; and except in the event of separation by divorce, or other causes,
a married woman in the United Kingdom cannot engage in trade. ”

pattern14

You really lost me on this one Ed I don't have air conditioning, I have no idea what a "Nat'l temperance day" is ( suppose I could look it up??), and I usually do the grocery shopping so to save her back, seeing we live miles out of town. And I do all the cooking.......are you sure you didn't inhale some fumes while you were cutting foam??

Flite-Metal

Read the top sentence in my post...

You made it sound as if you we're having to say may I in every element of your hobby activities. I have never had issues because I respect my wife's hobbies, making space for them.

Our severe heat makes for less than comfortable conditions in a garage shop for 6 months out of the year. Too often wives resent r/c due to their interests not being acknowledged, or worse...not budgeted while hubby enjoys his relaxing hobby(ies).

Sound like someone in your club? It's all too common. Not to pick on you Pattern..

pattern14

No problems Ed. I didn't understand the intention behind the post, so I'm glad you cleared it up. Being a shift worker means that I get to build, fix, and fly at all different times, and I have a dedicated shed/hangar/workshop some distance from the house. My wife ( bless her soul), actually paid for the building materials for this out of her inheritance Maybe she was trying to keep me out of the kitchen after all, but I suspect that the real reason was to give me my own space without having to work around everyone else in this somewhat hectic household Living in rural Tasmania means that there are no clubs close by, or even another fellow flier, so I get to fly from home, with hundreds of acres of farmland to use. No going away, travelling expenses etc. I see your point though...lots of blokes put their interests first, such as fishing, golf, motorcycles, firearms and so on, and then act surprised when their wife resents the time and cost involved Still trying to figure out how that fellow is going to get his plane out of the house though cheers..

Flite-Metal

Who's plane? Bernie's??? It has a two piece wing.

Ed

Capt G

Here's how the flaps work. The key is two connections on the servo arm - one to extend and the inner one to droop the flap. Range from zero to 40 degrees. Two Hi Tech 225MGs and one 85MG.

Flite-Metal

An excellent solution when model is smaller. The 13' wingspan B-47's have an inner flap extension of 5.125".
Below is the way I thought I would do this back in the beginning...but could not get the extension needed.
The stop in the track served the same as the second rod as a stop, then shuttle continues rearward.



Sam's initial design utilized Nyrod push-pull across the flap width. The long runs brought concern for temperature
changes effecting alignment and uniform function. Then he moved to telescoptic tubes, brass then carbon fiber.
What appeared to be minimum slip-fit was an education in ineffeciency by the time three telescoptic sets were
built as a test bed.

Sam's final flap configuration is a winner, about 90% smaller than previous in-bay parts, it is a miniature of the 1:1
flap drive. It was funny how the further along he worked the flaps eventually resembled and functioned most like
the original. We will be cutting our wing and laying up the inboard and outboard flaps shortly.

Flite-Metal

Project Preamble: Please read and determine for yourself how the following applies to you, the reader:

Any and all persons reading this discussion must come to their own determination of the safety and wisdom of
emulating or replicating any and all aspects of what is described within this discussion.

This includes, but is not limited to your own decision on the safety of and whether you should be involved in this
or these activities and any processes or use of equipment related to recreating what is, or has been discussed
here-in by topic author and or subscribers to WattFlyer, the host of this discussion.

Neither the author of this topic nor WattFlyer.com are responsible for proper or improper use of, nor the correct
or incorrectness of any process activity undertaken by any one or all readers of this construction thread.

*As in all modeling activities, reader beware of the personal skills to either properly or improperly apply the
principals described here-in. It is impossible to declare whether this activity is or is not proper for readers of
this discussion. The reader is solely responsible for their utilization of this information.

For your safety, consult an electrical engineer to explain the dangers associated with a model powered with
voltages equal or greater to those utilized in this EDF Boeing B-47 project.

Flite-Metal

Preping for hot wiring wing.

Ed

Don Sims

What Ed said...
