Originally Posted by FlyLT View Post
Hi all.

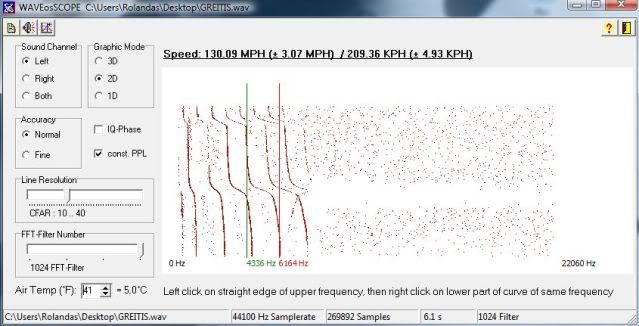

So I dopplered my Funjet too Not sure if I did that correctly...
here it is:

Setup: Funjet, JPEnErg 2815-4000kv motor, Turnigy 60A Plush, 4.1X4.1 APC prop, 4S 2200mAh 40C Zippy


Im getting ~128-130mph at ~40F

and here is some video sample

[media]http://vimeo.com/9534033[/media]
Hi FlyLT and Welcome to Wattflyers , as soon as someone checks your speed run for you and it ok, i will have the Adm. issue a speed Award, Take Care, Chellie

NAME; FlyLT
SPEED; 130 MPH
PLANE; Funjet
MOTOR; JPEnErg 2815 - 4000kv

ESC; Turnigy 60Amp Plush
BATTERY; 4s 2200mah 40C Zippy Lipo
PROP; APC 4x1x4.1 APC

Last edited by CHELLIE; 02-18-2010 at 03:50 AM.
CHELLIE is offline
Old 02-18-2010, 02:07 AM
  #1252
Larry3215
Look out for that tree!!!

Larry3215's Avatar

Join Date: Mar 2006
Location: Gig Harbor, Wa USA
Posts: 7,061
Default

Looks close enough to me
Larry3215 is offline
Old 02-18-2010, 03:44 AM
  #1253
CHELLIE
Super Contributor
Thread Starter

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Thank you Larry
CHELLIE is offline
Old 02-18-2010, 03:52 AM
  #1254
CHELLIE
Super Contributor
Thread Starter

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Welcome to the 100 MPH Club FlyLT Nice speed run.

NAME; FlyLT
SPEED; 130 MPH
PLANE; Funjet
MOTOR; JPEnErg 2815 - 4000kv
ESC; Turnigy 60Amp Plush
BATTERY; 4s 2200mah 40C Zippy Lipo
PROP; APC 4x1x4.1 APC
CHELLIE is offline
Old 02-18-2010, 11:17 AM
  #1255
Don Sims
Administrator

Don Sims's Avatar

Join Date: Sep 2005
Location: Middle Tennessee
Posts: 14,007
Default

Got it, thanks Chellie and Larry!
Don Sims is offline
Old 02-18-2010, 05:59 PM
  #1256
FlyLT
New Member

FlyLT's Avatar

Join Date: Feb 2010
Posts: 5
Default

wow,thats nice,Thank You

but..... shouldn't it be 125MPH speed deamon award?
FlyLT is offline
Old 02-18-2010, 07:53 PM
  #1257
Octavius
Alien Surfer

Octavius's Avatar

Join Date: May 2009
Posts: 675
Default

Yeah there is. I think you should have both.
Octavius is offline
Old 02-19-2010, 12:03 AM
  #1258
Don Sims
Administrator

Don Sims's Avatar

Join Date: Sep 2005
Location: Middle Tennessee
Posts: 14,007
Default

Originally Posted by FlyLT View Post
wow,thats nice,Thank You

but..... shouldn't it be 125MPH speed deamon award?

What do you mean? Looks like 125 to me!!

Upps, got it fixed for you!
Don Sims is offline
Old 02-19-2010, 12:27 AM
  #1259
FlyLT
New Member

FlyLT's Avatar

Join Date: Feb 2010
Posts: 5
Default

Originally Posted by Don Sims View Post
What do you mean? Looks like 125 to me!!

Upps, got it fixed for you!
Thank You
FlyLT is offline
Old 04-02-2010, 03:36 AM
  #1260
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

Can someone please Doppler this at around the 32 second mark, I'm curious how fast it's going...

[media]http://www.youtube.com/watch?v=bV-dJVgrXFA[/media]

It's an 64mm AMX Jet I got from hobbylobby's parts sale... airframe was $19

SK
ministeve2003 is offline
Old 04-02-2010, 04:17 AM
  #1261
scott-p
crash test pilot

scott-p's Avatar

Join Date: Oct 2009
Location: Dripping springs, Tx
Posts: 339
Default

Can you put video on here and figure out how fast it is going? that's amazing.
scott-p is offline
Old 04-02-2010, 04:25 AM
  #1262
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

Originally Posted by scott-p View Post
Can you put video on here and figure out how fast it is going? that's amazing.
yes, a level pass and sound is required the closer to the mic the better, the plane doesn't even have to be in view... some people use tape recorders... really cool, ain't it...LOL

SK
ministeve2003 is offline
Old 04-02-2010, 04:48 AM
  #1263
Larry3215
Look out for that tree!!!

Larry3215's Avatar

Join Date: Mar 2006
Location: Gig Harbor, Wa USA
Posts: 7,061
Default

Originally Posted by ministeve2003 View Post
Can someone please Doppler this at around the 32 second mark, I'm curious how fast it's going...

[media]http://www.youtube.com/watch?v=bV-dJVgrXFA[/media]It's an 64mm AMX Jet I got from hobbylobby's parts sale... airframe was $19

SK
How about 105+ ?

Not bad for a $19 airframe!!


Attached Thumbnails Click image for larger version

Name:	ministeve105mph.JPG
Views:	497
Size:	83.3 KB
ID:	124512
Larry3215 is offline
Old 04-02-2010, 04:49 AM
  #1264
Larry3215
Look out for that tree!!!

Larry3215's Avatar

Join Date: Mar 2006
Location: Gig Harbor, Wa USA
Posts: 7,061
Default

By the way, nice clean pass!
Larry3215 is offline
Old 04-02-2010, 04:54 AM
  #1265
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

Originally Posted by Larry3215 View Post
By the way, nice clean pass!
Whoohoo... I knew it was kicking up some speed...

Thanks alot...


Ok,

AMX Jet
Hoffman Mity mite motor
Eflite 64mm 6 blade fan (cut down to 3blades)
1550mah 25c 4cell Rhino Battery
Supper simple 50amp esc
Turnigy 3amp bec
4 hxt900 servos

I think that's all the info....

SK
ministeve2003 is offline
Old 04-02-2010, 05:00 AM
  #1266
Larry3215
Look out for that tree!!!

Larry3215's Avatar

Join Date: Mar 2006
Location: Gig Harbor, Wa USA
Posts: 7,061
Default

How many watts?
Larry3215 is offline
Old 04-02-2010, 05:04 AM
  #1267
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

Originally Posted by Larry3215 View Post
How many watts?
LOL, um.... I'll have to check that later... I didn't wattmeter it...

Dennis Checked his (on his f15) before with that same fan setup and I think it was like 750 and comes down cool, so I didn't bother checking... but he was using a bigger/better battery, so i'll try to wattmeter it tomorrow and see what it does... might be a little less...

SK
ministeve2003 is offline
Old 04-02-2010, 05:36 AM
  #1268
Alpea42
Parkjets Rule 3D Rocks

Alpea42's Avatar

Join Date: Nov 2007
Location: So. Ca. Chino
Posts: 3,646
Default

Oh God .... Class Clown gets his 100 mph badge. LOL
Alpea42 is offline
Old 04-02-2010, 07:07 AM
  #1269
CHELLIE
Super Contributor
Thread Starter

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Originally Posted by ministeve2003 View Post
Whoohoo... I knew it was kicking up some speed...

Thanks alot...


Ok,

AMX Jet
Hoffman Mity mite motor
Eflite 64mm 6 blade fan (cut down to 3blades)
1550mah 25c 4cell Rhino Battery
Supper simple 50amp esc
Turnigy 3amp bec
4 hxt900 servos

I think that's all the info....

SK
Nice speed Run Steve

NAME; MINISTEVE2003
SPEED; 105.00-MPH
PLANE; AMX Jet
MOTOR; Hoffman Mity Mite Motor
ESC; Super Simple 50 amp
BATTERY; 1500mah 4cell Rhino Lipo
PROP; Eflite EDF 64mm 6 blade cut to 3 Blade
CHELLIE is offline
Old 04-02-2010, 07:17 AM
  #1270
CHELLIE
Super Contributor
Thread Starter

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Thumbs up Thanks Guys

Originally Posted by Larry3215 View Post
By the way, nice clean pass!
Thank You Larry3215 and Don Sims Very Much, For all that you Do here in the 100Mph Club, Take care and have fun, Chellie
CHELLIE is offline
Old 04-02-2010, 01:09 PM
  #1271
Don Sims
Administrator

Don Sims's Avatar

Join Date: Sep 2005
Location: Middle Tennessee
Posts: 14,007
Default

Appreciate you too Chellie. SK you should see the award!
Don Sims is offline
Old 04-02-2010, 05:22 PM
  #1272
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

Thanks Guys...

Gotta take some video of a bluecor wing my buddy made for me, I tossed a turnigy heli motor on it and the same 4cell 1500mah pack, the thing has some zip to it too... I'm gonna guess 90-100 range... I'll try to get video this weekend...

SK
ministeve2003 is offline
Old 04-05-2010, 02:26 AM
  #1273
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

Ok guys... A guy at the field had a Radar gun, so we decided to get Chong's GWS Zero dial'd in...

first run was 108mph with a 8x8 prop

Second run was 124mph with a cut down 8x9 prop... and just after we got the reading... it flew about another 100ft, and blew itself apart....LOL

here's the pics...
Attached Thumbnails Click image for larger version

Name:	IMAGE_104.jpg
Views:	141
Size:	13.5 KB
ID:	124759   Click image for larger version

Name:	IMAGE_105.jpg
Views:	161
Size:	15.5 KB
ID:	124760   Click image for larger version

Name:	Chong 124mph.jpg
Views:	484
Size:	116.2 KB
ID:	124761

Last edited by ministeve2003; 04-05-2010 at 03:57 AM.
ministeve2003 is offline
Old 04-05-2010, 03:48 AM
  #1274
CHELLIE
Super Contributor
Thread Starter

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Originally Posted by ministeve2003 View Post
Ok guys... A guy at the field had a Radar gun, so we decided to get Chong's GWS Zero dial'd in...

first run was 108mph with a 9x9 prop

Second run was 124mph with a cut down 8x9 prop... and just after we got the reading... it flew about another 100ft, and blew itself apart....LOL

here's the pics...
get me some info on the power system so Chong can get his 100MPH Award, Take care, Chellie
CHELLIE is offline
Old 04-05-2010, 04:16 AM
  #1275
Larry3215
Look out for that tree!!!

Larry3215's Avatar

Join Date: Mar 2006
Location: Gig Harbor, Wa USA
Posts: 7,061
Default

He must have had some serious power in that thing to get that airframe to go that fast!

Did it flutter or did he try to turn to hard at speed?
Larry3215 is offline
