Old 10-01-2009, 10:13 PM
  #251
Moxus
Gremlin

Join Date: Jun 2008
Posts: 641
Default

ye, thanks for the tip. the coax copters is great for their stability and forgiving characteristics.
but i think i can handle the belt.
i flew the shuttle sxx with no problem back in the days, and on simulator i have no problem hovering, hovering nose agaisnt me, hovering upside down, with the sharpest 3d copters.
so i should be able to handle the belt, i just need to throw the stock radio in the bin and get a setup i can feel familiar with on my futaba.

edit:

wow, this mystical gyro switch actually reveals its a quite advanced one.
back in the hirobo days, all gyros but the msot expensive ones was mechanical, and only proprotional regulators (meaning that if you kick the tail, the gyro "counterkick" on the tail rotor).
but it appears the switch on the radio is switching on and off integral gyro stabilization.
meaning that if you kick the tail, the gyro will integrate the acceleration of the movement, and not only "counterkick" the tail, but also adjust tail back to its original position before the "kick".
effectively a headlock, literally. i thought that was just a marketing hype word, but it really is a head locking gyro

genious
i also found that with the integral turned off, and gyro gain adjusted high, the gyro WILL NOT WORK.
i guess thats where i screwed up.
thats a bad case of design error, if its not a error only on mine.

Last edited by Moxus; 10-01-2009 at 10:54 PM.
Moxus is offline
Old 10-03-2009, 01:00 AM
  #252
Cpt.TYPHOON
Member

Join Date: Mar 2007
Posts: 63
Default

Originally Posted by wrather1 View Post
Did you use a V-bar or some other flybarless system for the headgear? That is the most incredibly detailed model I have ever set eyes on - is it operational yet?

DW
Thanks wrather!

I did the design on the add-on's and created the idea of
a new look for the LAMA SA-315B (Special Edition) 40th anniversary this year.

My first heli, my first scale project and first hovering the LAMA
with out any stabilisation system. I am at my 50 mins of hovering and
and many approach exercices on a helipad on only 18 mins
logtime experiences on a helicopter.

Took me a year to acheive slowly. Working closely with my buddy scale master builder and flyer. Life could'nt have been better for me with
such experimented expert & viewing all my doing and supporting my built.

All the electronic's and conversion was made by this great master builder.
So I was in good hand in all view. When the time came to test the LAMA,
my buddy took care of all ajustments, hovering, foward flight, till it came to what we expect when you do scale flying.

The LAMA since the photo above as change greatly. Since I was trying many design's and testing on her while the time of the photo.

Now here is
how she look's like. Been flying hover since the 17 of september,,, the time I took my real first hover for real and the instructor master flyer beside me. All when better then expected for me,, and my Buddy who was really suprise how I was doing on the pilot in command seat. I was also.

Well to make a short story short,,, he,he,,
It flies like a dream and till now,, and will not jump any stages on the learning. Go slow,, it is why I'm in this hobby...

I come from the front seat on the fully scale jet's environememt.

Enjoy the LAMA all !
And if you feel like doing this LAMA as your next project,,,
Go for it,,, you'll have the time of your life doing so ...

We have tested new biger blades and all is just awesome,,, great lift
effect and will be add later for me to fly with those biger one !

Shot On Site Photography
Copyrights 2009

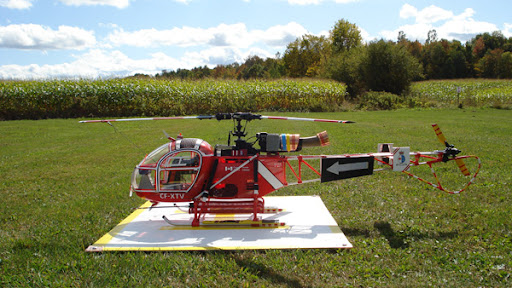

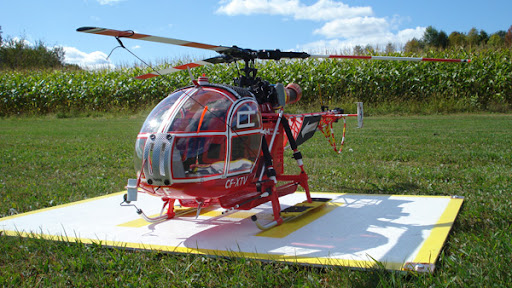

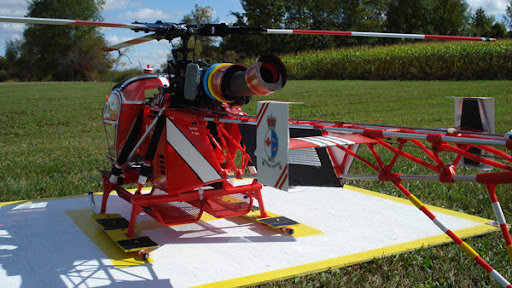

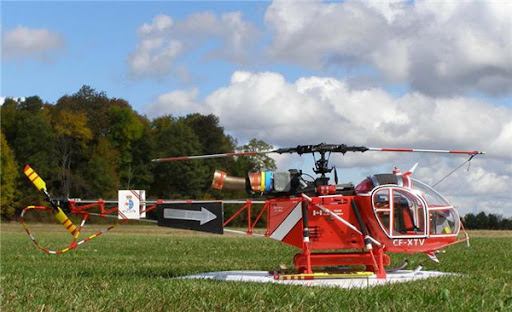

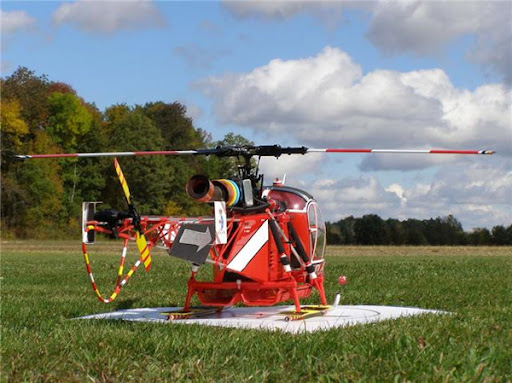

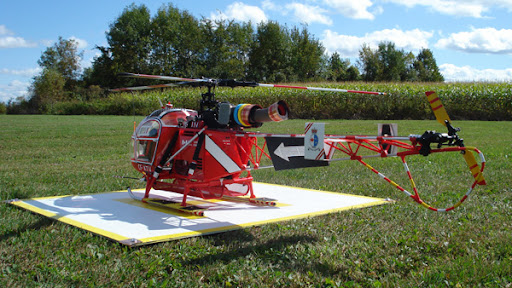

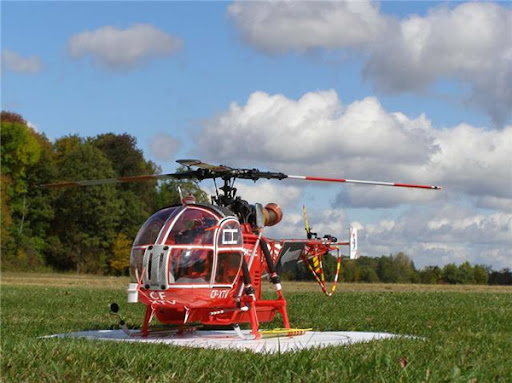

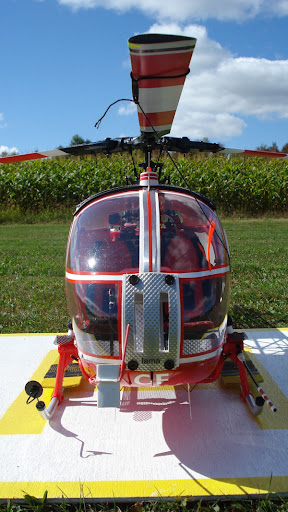

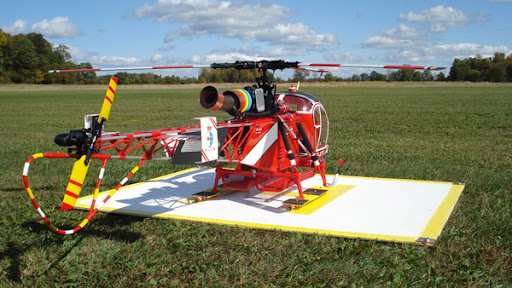

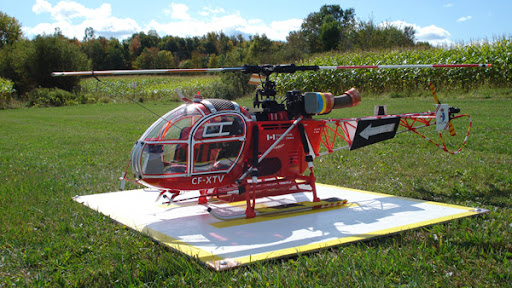

The LAMA SA-315B (SE)
SAR Canadian Coast Guard Mission Leader Helicopter Unit:



















Cpt.TYPHOON is offline
Old 11-25-2009, 08:02 PM
  #253
fast400
New Member

fast400's Avatar

Join Date: Nov 2009
Posts: 4
Default heli

well here`s my cheapy.
nothing fancy but it flies.
Attached Thumbnails Click image for larger version

Name:	new 001.jpg
Views:	230
Size:	153.6 KB
ID:	114110   Click image for larger version

Name:	new 002.jpg
Views:	237
Size:	155.7 KB
ID:	114111   Click image for larger version

Name:	mini 004.jpg
Views:	228
Size:	132.8 KB
ID:	114120   Click image for larger version

Name:	mini 005.jpg
Views:	217
Size:	128.4 KB
ID:	114121   Click image for larger version

Name:	mini 002.jpg
Views:	209
Size:	144.8 KB
ID:	114122

Click image for larger version

Name:	mini 003.jpg
Views:	206
Size:	193.4 KB
ID:	114123

Last edited by fast400; 11-25-2009 at 08:31 PM.
fast400 is offline
Old 11-25-2009, 09:34 PM
  #254
Buzz
Pcar

Join Date: Aug 2007
Location: Daytona Beach, FL
Posts: 1,731
Default

Originally Posted by Cpt.TYPHOON View Post
Thanks wrather!

I did the design on the add-on's and created the idea of
a new look for the LAMA SA-315B (Special Edition) 40th anniversary this year.

My first heli, my first scale project and first hovering the LAMA
with out any stabilisation system. I am at my 50 mins of hovering and
and many approach exercices on a helipad on only 18 mins
logtime experiences on a helicopter.

Took me a year to acheive slowly. Working closely with my buddy scale master builder and flyer. Life could'nt have been better for me with
such experimented expert & viewing all my doing and supporting my built.

All the electronic's and conversion was made by this great master builder.
So I was in good hand in all view. When the time came to test the LAMA,
my buddy took care of all ajustments, hovering, foward flight, till it came to what we expect when you do scale flying.

The LAMA since the photo above as change greatly. Since I was trying many design's and testing on her while the time of the photo.

Now here is
how she look's like. Been flying hover since the 17 of september,,, the time I took my real first hover for real and the instructor master flyer beside me. All when better then expected for me,, and my Buddy who was really suprise how I was doing on the pilot in command seat. I was also.

Well to make a short story short,,, he,he,,
It flies like a dream and till now,, and will not jump any stages on the learning. Go slow,, it is why I'm in this hobby...

I come from the front seat on the fully scale jet's environememt.

Enjoy the LAMA all !
And if you feel like doing this LAMA as your next project,,,
Go for it,,, you'll have the time of your life doing so ...

We have tested new biger blades and all is just awesome,,, great lift
effect and will be add later for me to fly with those biger one !

Shot On Site Photography
Copyrights 2009

The LAMA SA-315B (SE)
SAR Canadian Coast Guard Mission Leader Helicopter Unit:




















Were you working with THE Scalemaster himself? Was it John?
If so, I bought his unfinished AH-6 giant scale heli.... the guy is amazing. He builds off the top of his head! Very seldom any plans and his helicopters and fuel jet turbine planes are incredible. He tried to tell me I didn't need the mixing gear because the AH-6 has 5 blades and it's very stable.

I've also flown other helicopters and have no problems with orientation... but this thing is so scale (and expensive) I'd have an apoplectic fit if something happened to it. I may have already posted pictures of it... but it's just so cool... I may post them again! lol

If you talk to John... tell him Buzz in Daytona said..."Making progress here!"

Buzz
Buzz is offline
Old 12-24-2009, 01:58 AM
  #255
kenchiroalpha
Retired Master Chief USN

kenchiroalpha's Avatar

Join Date: Jul 2006
Posts: 3,837
Default

Hi
What Fantastic helis every one has
Heres some of mine
http://www.rchangout.com/forums/album.php?albumid=1
http://www.wattflyer.com/forums/album.php?albumid=438
Take care
Hank

Last edited by kenchiroalpha; 07-09-2011 at 10:04 PM. Reason: added gallery
kenchiroalpha is offline
Old 12-24-2009, 01:21 PM
  #256
slotdrag
New Member

Join Date: Dec 2009
Posts: 19
Default

heres mine efight cx2 and helimaxx axe cp and my sons air hogs havic.
Attached Thumbnails Click image for larger version

Name:	2009 474.jpg
Views:	223
Size:	123.6 KB
ID:	116421
slotdrag is offline
Old 12-24-2009, 04:52 PM
  #257
Buzz
Pcar

Join Date: Aug 2007
Location: Daytona Beach, FL
Posts: 1,731
Default

Ok, here's another of Scalemaster's creations. Lots of work to do yet... but it's the only one in the world. The AH6 .... cannons and rocket launchers will be wired for light and sound.

This is NOT the skimpy kit of the same helicopter. This is a one off design.
Attached Thumbnails Click image for larger version

Name:	ah6`0.jpg
Views:	226
Size:	27.8 KB
ID:	116444   Click image for larger version

Name:	ah6big.jpg
Views:	245
Size:	208.6 KB
ID:	116445   Click image for larger version

Name:	ah6big2.jpg
Views:	231
Size:	184.6 KB
ID:	116446   Click image for larger version

Name:	ah61.jpg
Views:	212
Size:	234.1 KB
ID:	116447   Click image for larger version

Name:	ah64.jpg
Views:	221
Size:	26.3 KB
ID:	116448

Buzz is offline
Old 01-19-2010, 03:54 AM
  #258
Slip23us
Cool Member

Slip23us's Avatar

Join Date: Nov 2008
Posts: 72
Default

Originally Posted by Cpt.TYPHOON View Post
Thanks wrather!

I did the design on the add-on's and created the idea of
a new look for the LAMA SA-315B (Special Edition) 40th anniversary this year.

My first heli, my first scale project and first hovering the LAMA
with out any stabilisation system. I am at my 50 mins of hovering and
and many approach exercices on a helipad on only 18 mins
logtime experiences on a helicopter.

Took me a year to acheive slowly. Working closely with my buddy scale master builder and flyer. Life could'nt have been better for me with
such experimented expert & viewing all my doing and supporting my built.

All the electronic's and conversion was made by this great master builder.
So I was in good hand in all view. When the time came to test the LAMA,
my buddy took care of all ajustments, hovering, foward flight, till it came to what we expect when you do scale flying.

The LAMA since the photo above as change greatly. Since I was trying many design's and testing on her while the time of the photo.

Now here is
how she look's like. Been flying hover since the 17 of september,,, the time I took my real first hover for real and the instructor master flyer beside me. All when better then expected for me,, and my Buddy who was really suprise how I was doing on the pilot in command seat. I was also.

Well to make a short story short,,, he,he,,
It flies like a dream and till now,, and will not jump any stages on the learning. Go slow,, it is why I'm in this hobby...

I come from the front seat on the fully scale jet's environememt.

Enjoy the LAMA all !
And if you feel like doing this LAMA as your next project,,,
Go for it,,, you'll have the time of your life doing so ...

We have tested new biger blades and all is just awesome,,, great lift
effect and will be add later for me to fly with those biger one !

Shot On Site Photography
Copyrights 2009

The LAMA SA-315B (SE)
SAR Canadian Coast Guard Mission Leader Helicopter Unit:



















nice heli
Slip23us is offline
Old 04-02-2010, 09:01 PM
  #259
Riffster
Just Hovering Around

Join Date: Mar 2010
Location: OHIO And Brooklyn NY
Posts: 10
Thumbs up This is my Bird

the whole heli !


The new Rotor Head


The New Tail Box
Riffster is offline
Old 05-13-2010, 10:43 PM
  #260
eranbw
New Member

eranbw's Avatar

Join Date: Sep 2008
Posts: 10
Default My helis :-)

I'm using scorpion setups on mine.
Attached Thumbnails Click image for larger version

Name:	IMG_1323.JPG
Views:	218
Size:	108.8 KB
ID:	127478
eranbw is offline
Old 01-27-2011, 07:41 PM
  #261
Unstoppable RC Flyer
just flying around

Join Date: Jan 2011
Location: frederickspurg
Posts: 15
Default

Hey guys nice heli's, I was just wanted to know what do you think is best fixed pitch heli for a beginner?
Unstoppable RC Flyer is offline
Old 01-27-2011, 09:55 PM
  #262
kenchiroalpha
Retired Master Chief USN

kenchiroalpha's Avatar

Join Date: Jul 2006
Posts: 3,837
Talking

Originally Posted by Unstoppable RC Flyer View Post
Hey guys nice heli's, I was just wanted to know what do you think is best fixed pitch heli for a beginner?
Hi
Welcome aboard
Im pleased to meet you
Blade MSR
Heres mine
Do enjoy
[media]http://www.youtube.com/watch?v=erRv5vVw2Q4[/media]
Take care
Hank
kenchiroalpha is offline
Old 01-28-2011, 08:24 PM
  #263
Unstoppable RC Flyer
just flying around

Join Date: Jan 2011
Location: frederickspurg
Posts: 15
Default

Originally Posted by kenchiroalpha View Post
Hi
Welcome aboard
Im pleased to meet you
Blade MSR
Heres mine
Do enjoy
[media]http://www.youtube.com/watch?v=erRv5vVw2Q4[/media]
Take care
Hank
thank you very much, it looks like a nice plane and good price range to but im going to see if there are any more idea's.
Unstoppable RC Flyer is offline
Old 02-10-2011, 02:02 AM
  #264
Unstoppable RC Flyer
just flying around

Join Date: Jan 2011
Location: frederickspurg
Posts: 15
Default

Originally Posted by kenchiroalpha View Post
Hi
Welcome aboard
Im pleased to meet you
Blade MSR
Heres mine
Do enjoy
[media]http://www.youtube.com/watch?v=erRv5vVw2Q4[/media]
Take care
Hank
ya i got the blade and love it
Unstoppable RC Flyer is offline
Old 07-09-2011, 09:55 PM
  #265
d12bn
Member

Join Date: Apr 2007
Posts: 115
Default Big boy

Sold all my heli's years ago and the wife bought me this one for fathers day
Attached Thumbnails Click image for larger version

Name:	mcpx 021.jpg
Views:	156
Size:	195.4 KB
ID:	150592
d12bn is offline
Old 07-09-2011, 10:07 PM
  #266
kenchiroalpha
Retired Master Chief USN

kenchiroalpha's Avatar

Join Date: Jul 2006
Posts: 3,837
Talking

Originally Posted by d12bn View Post
Sold all my heli's years ago and the wife bought me this one for fathers day
Hi
Welcome aboard
Im pleased to meet you
Congratulations on the new heli
May she bring you much enjoyment in the years to come
Take care
Yours Hank
kenchiroalpha is offline
Old 07-10-2011, 05:52 PM
  #267
d12bn
Member

Join Date: Apr 2007
Posts: 115
Default Thanks

Thanks Hank
d12bn is offline
Old 01-01-2012, 02:48 PM
  #268
nightflyr
Member

nightflyr's Avatar

Join Date: Mar 2010
Posts: 22
Default Here is a first of it's kind

Custom built 900E...

Comes in at 8' 4 3/4" tip to tip



Another ... The First 800E 3D in North America..













Another 800 build...




A 650 stretch project..






Some of the fleet under protection...


Last edited by nightflyr; 01-01-2012 at 03:03 PM.
nightflyr is offline
Old 01-20-2014, 08:55 AM
  #269
son0sam
New Member

son0sam's Avatar

Join Date: Jan 2014
Posts: 8
Default

my
LH 1103 4 Channel Infrared Remote Control RC Helicopter
son0sam is offline
Old 01-20-2014, 12:27 PM
  #270
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

As the thread has been resurected I might as well show off my latest heli. It's a Compass 7HV Ultimate. This is a 700 class electric heli, power is by 12s 5000mAh LiPo.

I got the kit at a bargain price on eBay but completing it isnt going to be cheap because everthing is expensive for these big helis, the cost of batteries and servo makes your eyes water. Lets hope I dont crash it

this is a picture google came up with, mine is the same:

JetPlaneFlyer is offline
Old 01-20-2014, 05:00 PM
  #271
pizzano
Behold The Renaissance

pizzano's Avatar

Join Date: May 2012
Location: So. Calif
Posts: 2,316
Default

Mine will pyro, hurricane, invert....and crash too..... just like the big boys.....This is a live photo......



And it dosen't take a lot of time or money to get it back in the air....
pizzano is offline
Old 01-20-2014, 07:45 PM
  #272
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

Those little quads are a lot of fun.

just to prove I'm not fantasising, here's a 'real' photo of my new heli:
Attached Thumbnails Click image for larger version

Name:	CIMG1139.jpg
Views:	67
Size:	141.1 KB
ID:	173000
JetPlaneFlyer is offline
Old 01-20-2014, 08:22 PM
  #273
pizzano
Behold The Renaissance

pizzano's Avatar

Join Date: May 2012
Location: So. Calif
Posts: 2,316
Default

Originally Posted by JetPlaneFlyer View Post
Those little quads are a lot of fun.

just to prove I'm not fantasising, here's a 'real' photo of my new heli:
Very nice JPF......Bet it will need a Scorpion and Castle class motor/ESC combo....What Type of FBL Control unit do you intend to use...curious about the gyro?

You ain't kidding about the $$$ investment......seems the ARF (belt drive) kit for $699.00 is just the beginning...toss in another + $900.00 for decent electronics......and keep her out of the turf, she'll be a great investment.....I'd be sweating giant bullets on the maiden with this one..
pizzano is offline
Old 01-20-2014, 09:07 PM
  #274
JetPlaneFlyer
Super Contributor

JetPlaneFlyer's Avatar

Join Date: Mar 2009
Location: Aberdeen, Scotland
Posts: 6,122
Default

I got the combo kit complete with Compass' own monstrous SZ-4926 motor rated at 160A and 7000W. I picked the kit up for less than half the UK retail price, so that's a good start.

I already had a spare Castle Edge 120HV, so all I need is servos and FBL controller.

I've order three RJX FS-0521 HV servos for cyclic and a single RJX FS-0521T HV for the tail. The RJX servos seem top be an excellent spec and while not exactly 'cheap' aren't as eye wateringly expensive as other high-voltage/high-speed/high-torque servos.

For the FBL controller I'm just going to use an Align 3GX. Many don't rate them but I've had no problem and I know how to set them up, which is half the battle. I'll use a couple of DSMX satellites rather than a conventional Rx, I already have those spare.

The motor is a bit of a problem. Turns out that there was a batch of motors with magnets that came loose, and the motor i have is one of them. All of those motors were replaced under warantee but I think the seller pulled a bit of a 'fast one' and kept the good motor to sell separately (he's already put it on eBay) and gave me the 'dud'. One magnet was loose before i even turned the motor.

Fortunately it's not so hard to fix, it just needs some suitable Loctite (I'm using Loctite 480) running in around the magnets to fix them securely.
JetPlaneFlyer is offline
Old 01-20-2014, 09:36 PM
  #275
FlyWheel
Ochroma Pyramidale Tekton

FlyWheel's Avatar

Join Date: Jul 2007
Location: Blackstock, South Carolina
Posts: 3,029
Default

I wouldn't throw this heli out!
FlyWheel is offline

Quick Reply: Show off your sweet helis


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.

Page generated in 0.13547 seconds with 26 queries
