Stevens AeroModel Daddy-O 525 Build Log

Old 12-26-2010, 01:34 AM
  #1
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default Stevens AeroModel Daddy-O 525 Build Log

Look what the wife got me for Christmas. (Ok, she let me buy it back in Oct when they were on sale on the condition it was her Christmas present to me and that I wouldn’t start on it until after Christmas.) Well, it’s after Christmas morning, so I have finally taken the wrapper off!

Here’s some quick data from StevensAero.com
Airframe Construction Balsa
Product Origin Colorado, USA
Wing Span (in.) 52.5
Wing Area (sq. in.) 485
Length (in.) 42
Flying Weight (oz.) 36

The complete information can be found here: http://www.stevensaero.com/StevensAe....-p-19952.html

I’ve had my eye on this kit since it was prototyped last year. I think it’s the perfect 1st Mid sized sport plane for me to fly at the club with all of the gassers. It’s my first Stevens AeroModel kit and I’m looking forward to getting started.

I’ve already picked a power system as well. Everything is from HeadsUpRc.com
Motor: 3542-10 http://www.headsuprc.com/servlet/the...lectric/Detail
ESC: EMax 40 Amp http://www.headsuprc.com/servlet/the...Amp-ESC/Detail
Servos: EMax ES08MA http://www.headsuprc.com/servlet/the...2g-EMAX/Detail
Receiver: ?? Still need one. Most likely a Spektrum AR600 if I can get one at a decent price.
Props: APC 11x 5.5 or a Xoar Wood Electric 11x 5 (This should look pretty!)

I’ve opened up the kit and boy it seems big to me. There are 4 separate 48 in balsa wood spars that came with the kit, so the box is huge. I have pulled everything out and inventoried it. Everything is there that is supposed to be. The balsa is of good quality and the cutting looks great. I have to be careful so the parts don’t fall out. I think my only issue is going to be the size of this kit. My biggest plane so far is the Mountain Models Eva Sport. About the weight of this plane.

Wish me luck! I plan to build this slowly and carefully most of the winter and sometimes work gets in the way, so don’t expect a quick build.

Steve
Attached Thumbnails Click image for larger version

Name:	samcat-05c13c61dec63877f548397626a0b982.jpg
Views:	2324
Size:	23.0 KB
ID:	140981   Click image for larger version

Name:	IMG_0931-small.jpg
Views:	1084
Size:	168.5 KB
ID:	140982   Click image for larger version

Name:	IMG_0932-small.jpg
Views:	998
Size:	149.7 KB
ID:	140983   Click image for larger version

Name:	IMG_0954-small.jpg
Views:	1127
Size:	165.6 KB
ID:	140984   Click image for larger version

Name:	IMG_0979.jpg
Views:	1130
Size:	149.8 KB
ID:	140985

Click image for larger version

Name:	IMG_0982.jpg
Views:	913
Size:	154.8 KB
ID:	140986

Last edited by Stevephoon; 12-27-2010 at 05:29 AM.
Stevephoon is offline
Old 12-26-2010, 01:58 AM
  #2
rcers
Super Contributor

rcers's Avatar

Join Date: Jul 2005
Location: Trophy Club TX
Posts: 6,314
Default

Excellent - subscribe.
rcers is offline
Old 12-26-2010, 04:44 AM
  #3
offtom
Megans Servant

offtom's Avatar

Join Date: Dec 2006
Location: My Basement
Posts: 2,213
Default

Nice looking plane.

Should be fun to watch.
offtom is offline
Old 12-26-2010, 04:56 AM
  #4
dumo01
dumo01

dumo01's Avatar

Join Date: Mar 2009
Location: Columbus, Ohio
Posts: 775
Default

Great looking plane
Looking forward to the build
Subscribed
dumo01 is offline
Old 12-27-2010, 05:09 AM
  #5
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default Getting Started

Thanks everyone for looking in! I'm sure I'll need some help along the way, so it's good to have you along.

I've made a tiny bit of progress tonight. 12 parts assembled and two of the 45 instructional pages of the manual are complete!

This is the start of the fuselage. These parts are almost all 1/8 in light plywood. Much stronger than little planes I currently have. I am at a step where some thick CA needs to cure, so I'm done for the night.

The fits so far have been perfect. Like a good jigsaw puzzle. Most of the fuselage will be built just while tack gluing. The final glue doesn't get applied until most of the major pieces are together and (hopefully) nice and straight. This is according to the manual, which is very good. Every step has a photo that goes with it. So far, even I haven't needed to reread or redo anything. I am sure that that time is coming, I always screw something up at some point!

Steve
Attached Thumbnails Click image for larger version

Name:	IMG_0983.jpg
Views:	811
Size:	151.5 KB
ID:	141012   Click image for larger version

Name:	IMG_0984.jpg
Views:	900
Size:	152.6 KB
ID:	141013
Stevephoon is offline
Old 12-27-2010, 02:34 PM
  #6
texasclouds
Super Contributor

texasclouds's Avatar

Join Date: Sep 2009
Location: Central Texas
Posts: 1,375
Default

Cool! Subscribed!!
texasclouds is offline
Old 12-28-2010, 03:06 PM
  #7
offtom
Megans Servant

offtom's Avatar

Join Date: Dec 2006
Location: My Basement
Posts: 2,213
Default

Originally Posted by Stevephoon View Post
I always screw something up at some point!

Steve

Don't think of it as screwing up, think of it as a "Learning experience."
offtom is offline
Old 12-28-2010, 04:07 PM
  #8
rcers
Super Contributor

rcers's Avatar

Join Date: Jul 2005
Location: Trophy Club TX
Posts: 6,314
Default

Make a right wing and a left one, same for fuse sides. Other than that you can generally get by with mistakes.

The jig saw nature of these laser cut kits helps too.

Mike
rcers is offline
Old 12-28-2010, 04:39 PM
  #9
smokejohnson
Super Contributor

smokejohnson's Avatar

Join Date: Dec 2006
Location: Tulsa
Posts: 5,687
Default Re: Stevens AeroModel Daddy-O 525 Build Log

The Daddy O looks awesome, can't wait to see it come together. I love SA kits, they're fun to build.
smokejohnson is offline
Old 12-29-2010, 05:02 AM
  #10
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default

Two more pages of the manual are complete and two sheets of wood are now empty! It’s just beginning to look a little like a fuselage. The internal ply structure is now bonded to balsa sides. The sides of the fuselage are big enough that they are in 4 separate pieces. See the attached pictures. All bonding is being performed using thick CA or med CA per the instructions. I’m using odorless med CA because it is much easier for me to work with since I’m building in an enclosed basement. The med CA is the default glue to use for this kit. The odorless CA does take a little longer to dry, but having it not irritate me is well worth the extra time it takes to use.

The instructions have you manually ream out the landing gear holes. I could not manually spin the 1/8th drill bit to open the holes. Maybe I was too sloppy with the glue and/or the ply it is inserted to is extra strong. I had to use the drill on an ultra low speed with an extra long drill bit to clear the rest of the structure. So now the pre-bent landing gear wire can slide in with only a tiny bit of encouragement. I also just realized I don't have a picture of the bottom of the fuselage. I'll do that tomorrow.

Steve
Attached Thumbnails Click image for larger version

Name:	IMG_0986.jpg
Views:	672
Size:	152.6 KB
ID:	141077   Click image for larger version

Name:	IMG_0987.jpg
Views:	750
Size:	145.7 KB
ID:	141078   Click image for larger version

Name:	IMG_0988.jpg
Views:	779
Size:	146.9 KB
ID:	141079
Stevephoon is offline
Old 12-29-2010, 07:31 PM
  #11
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default

A couple more pictures of the bottom of the fuselage. The battery attaches here on the bottom. There is lots of room and quite a bit of fore/aft movement available for CG corrections. In the picture with the landing gear, they are only slightly in. It was difficult to remove the wire once it is fully seated and I didn't want to risk anything by assembling/disassembiling again.

Also notice that at the rear of the battery opening there is also room for a wire landing gear mount. This is for the float option! This plane is already designed for mounting floats. I remember that that the first prototype video had shots of the float version. I have never flown off the water, so I am not planning on instaling floats but there are lots of lakes around me so maybe someday.

Steve
Attached Thumbnails Click image for larger version

Name:	IMG_0990.jpg
Views:	503
Size:	127.6 KB
ID:	141091   Click image for larger version

Name:	IMG_0991.jpg
Views:	549
Size:	111.4 KB
ID:	141092
Stevephoon is offline
Old 12-30-2010, 05:38 AM
  #12
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default

Todays's build progress was another 2 or 3 pages in the manual. Nothing to report. The instruction manual is good, the wood cutting is excellent and everything fits like a champ! Just slowly plugging away when I get a couple of spare hours. The nose sheeting is 3/32 balsa on this model. That seemed really thick to bend around the nose, but the windex trick worked like magic. Tomorrow, when it's dry, it will get glued down.

Steve
Attached Thumbnails Click image for larger version

Name:	IMG_0994.jpg
Views:	628
Size:	139.6 KB
ID:	141107   Click image for larger version

Name:	IMG_0995.jpg
Views:	585
Size:	146.3 KB
ID:	141108   Click image for larger version

Name:	IMG_0992.jpg
Views:	670
Size:	134.4 KB
ID:	141109   Click image for larger version

Name:	IMG_0993.jpg
Views:	701
Size:	124.7 KB
ID:	141110
Stevephoon is offline
Old 12-30-2010, 06:37 AM
  #13
CHELLIE
Super Contributor

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Looking Good, The motor you picked will work great Too, Subcribed, BTW if you get tired of building that Plane, just Put all the parts in a big box and send it to me LOL, Just kidding, Take care and have fun, Chellie
CHELLIE is offline
Old 12-30-2010, 02:36 PM
  #14
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default

Chellie, I'm glad you like the motor selection. I was beginning to think it might be a little big for this plane. But, I'd rather have a little too much power instead of not quite enough. I'm sorry but this plane is staying with me, but if you're ever in Michigan, please stop by and I'll let you fly it!

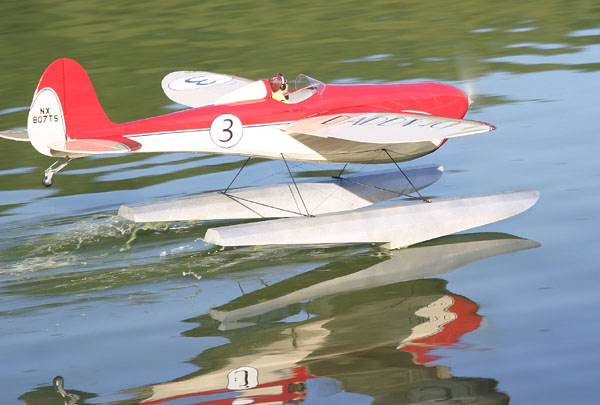

I've finally found some picts of the float version. They are on Thayer Syme's site. He is the designer of the prototype version.
http://www.gryffinaero.com/models/ff...525/index.html

Steve
Stevephoon is offline
Old 12-31-2010, 04:54 AM
  #15
tobydogs
love to build!

tobydogs's Avatar

Join Date: Jan 2010
Location: nj usa
Posts: 3,692
Default

steve,its great to see a build thread goin on this winter,i may not post a lot but count me suscribed. looking foward to watching and reading the progress reports......by the way,pictures look good.
tobydogs is offline
Old 12-31-2010, 12:42 PM
  #16
smokejohnson
Super Contributor

smokejohnson's Avatar

Join Date: Dec 2006
Location: Tulsa
Posts: 5,687
Default Too Cool

The more I see of this plane the more I like it.



smokejohnson is offline
Old 12-31-2010, 01:23 PM
  #17
surfer dude
Super Contributor

surfer dude's Avatar

Join Date: Sep 2008
Location: Jenks, Okla.
Posts: 1,047
Default

Nice looking plane, I really like the old time look. Should be a nice relaxing Sunday cruiser.
I predict James (Smoke Johnson) will have this plane by Summer.
surfer dude is offline
Old 12-31-2010, 07:07 PM
  #18
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default

The bottom stringers have been installed along with a couple of doublers per the instructions. I really like the shape of the fuselage. I hope my basic covering skills can do it justice. Just the top stringers are left to do, then the main fuselage wood structure is complete. It's nice to have this week off of work, so I have time to build.

As a side note, smoke and surfer_dude, I plan on trying to start up a combat group at my club this summer. I've been reading your thread on yours and it sounds way too fun. The FF plane seems simple enough to build and cheap, so I was planning on recommending a plane with those specs to use. If you have or know of any real rules that are already written, can you point me to them? (Other than the start of your combat thread.)

Steve

I was just looking at the picts of this plane again, and the fuselage has a little of a whale shape to it. I think that's why I must like it!
Attached Thumbnails Click image for larger version

Name:	IMG_0996.jpg
Views:	633
Size:	132.4 KB
ID:	141185   Click image for larger version

Name:	IMG_0997.jpg
Views:	639
Size:	154.0 KB
ID:	141186   Click image for larger version

Name:	IMG_0998.jpg
Views:	583
Size:	154.8 KB
ID:	141187
Stevephoon is offline
Old 01-01-2011, 04:03 AM
  #19
offtom
Megans Servant

offtom's Avatar

Join Date: Dec 2006
Location: My Basement
Posts: 2,213
Default

That's srtating to come together nicely.

The shape kind of reminds me of some of the old racers.
offtom is offline
Old 01-01-2011, 04:57 AM
  #20
CHELLIE
Super Contributor

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Originally Posted by Stevephoon View Post
Chellie, I'm glad you like the motor selection. I was beginning to think it might be a little big for this plane. But, I'd rather have a little too much power instead of not quite enough. I'm sorry but this plane is staying with me, but if you're ever in Michigan, please stop by and I'll let you fly it!

I've finally found some picts of the float version. They are on Thayer Syme's site. He is the designer of the prototype version.
http://www.gryffinaero.com/models/ff...525/index.html

Steve
you can never ever have to big of a Motor for your plane if it will fit in the cowl, with out sticking out, its just right I like using the biggest motor that will fit in the cowls on my planes, reason being, is that I never have to add any nose lead weight to get the CG just right, i hate to have to add dead weight, i would rather the weight needed to balance the plane be the motor weight More Power Take care and Happy New Year to All, Chellie
CHELLIE is offline
Old 01-01-2011, 04:59 AM
  #21
CHELLIE
Super Contributor

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Originally Posted by smokejohnson View Post
The more I see of this plane the more I like it.



I Always Knew that you had good Taste James Your better half will agree too, because you picked Her
CHELLIE is offline
Old 01-01-2011, 07:07 AM
  #22
surfer dude
Super Contributor

surfer dude's Avatar

Join Date: Sep 2008
Location: Jenks, Okla.
Posts: 1,047
Default

http://www.wattflyer.com/forums/show...01&postcount=1
Here is the link for the E-Combat in Tulsa thread. The first post list officail rules for combat, and then there is a pretty good descusion on page 10 about rules. We started out using a few rules, streamers, etc..., but now that we have 8-12 pilots every time we fly, we don't even bother with the streamers half the time, and just fly full combat, last man up wins. We like the carnage
We start flying the F&F on page 24, it's a fast build and a great flyer, perfect for combat. (I built one this morning) I have the plans on my hanger photos, just click on my avatar. I did modify a little. I added 1/2 inch depth to the ailerons, and the elevator, and shortened, and lengthened the vertical by 1 inch in both directions.
surfer dude is offline
Old 01-01-2011, 04:48 PM
  #23
smokejohnson
Super Contributor

smokejohnson's Avatar

Join Date: Dec 2006
Location: Tulsa
Posts: 5,687
Default

Originally Posted by Stevephoon View Post
As a side note, smoke and surfer_dude, I plan on trying to start up a combat group at my club this summer...
I can do some digging later and PM you some links with info on what other guys are doing around the country. Combat is a blast you're going to love it.

The Daddy O is looking good, keep those pics coming .
smokejohnson is offline
Old 01-03-2011, 02:56 AM
  #24
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default Stringers and Battery Cover

I got back to it today. The next parts to install are the rear upper stringers, then the push rod tubes. The push rod tubes are just a little tricky because they cross just before going through the last former. There is not a picture in the instuctions of the elevator side exit hole. It must be the foreward hole. This is where the tube wanted to exit and I wanted the least amount of bending. I'm not sure why you install the tubes after the stringers. It would have been easier to do the tubing first. The tubes have been glued in and I've tested putting the push rods thru. No binding. no problems.

Next was the battery cover. One thing a little different is that this does not build at right (90 deg) angles. This should help the battery hatch open easier, and it keeps all of the formers at the same angle. There is also a special piece of 1/64 ply for air exit holes. It should look nice once it is covered. The magnuts are set in a long way. I used the eraser side of a wood pencil to push them in place.

I am really enjoying this build. The kit so far has been excellent. Everything fits perfectly and the instructions are really good. I like when there are no surprises!

Steve
Attached Thumbnails Click image for larger version

Name:	IMG_0999.jpg
Views:	536
Size:	140.9 KB
ID:	141331   Click image for larger version

Name:	IMG_1000.jpg
Views:	508
Size:	145.0 KB
ID:	141332   Click image for larger version

Name:	IMG_1001.jpg
Views:	514
Size:	86.9 KB
ID:	141333   Click image for larger version

Name:	IMG_1002.jpg
Views:	516
Size:	100.7 KB
ID:	141334   Click image for larger version

Name:	IMG_1003.jpg
Views:	520
Size:	143.9 KB
ID:	141335

Click image for larger version

Name:	IMG_1004.jpg
Views:	546
Size:	123.1 KB
ID:	141336   Click image for larger version

Name:	IMG_1005.jpg
Views:	524
Size:	163.8 KB
ID:	141337   Click image for larger version

Name:	IMG_1006.jpg
Views:	535
Size:	158.0 KB
ID:	141338   Click image for larger version

Name:	IMG_1007.jpg
Views:	574
Size:	159.6 KB
ID:	141339   Click image for larger version

Name:	IMG_1009.jpg
Views:	593
Size:	156.3 KB
ID:	141340

Click image for larger version

Name:	IMG_1010.jpg
Views:	633
Size:	145.3 KB
ID:	141341

Last edited by Stevephoon; 01-03-2011 at 08:29 PM.
Stevephoon is offline
Old 01-03-2011, 03:16 AM
  #25
Stevephoon
Super Contributor
Thread Starter

Stevephoon's Avatar

Join Date: Aug 2005
Location: White Lake, MI
Posts: 1,140
Default

Originally Posted by surfer dude View Post
http://www.wattflyer.com/forums/show...01&postcount=1
Here is the link for the E-Combat in Tulsa thread. The first post list officail rules for combat, and then there is a pretty good descusion on page 10 about rules. .....

We start flying the F&F on page 24, it's a fast build and a great flyer, perfect for combat. (I built one this morning) I have the plans on my hanger photos, just click on my avatar. I did modify a little. I added 1/2 inch depth to the ailerons, and the elevator, and shortened, and lengthened the vertical by 1 inch in both directions.
Thanks for the info. I'll definitely check out your plans.

Steve
Stevephoon is offline

Quick Reply: Stevens AeroModel Daddy-O 525 Build Log


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.

Page generated in 0.12935 seconds with 42 queries
